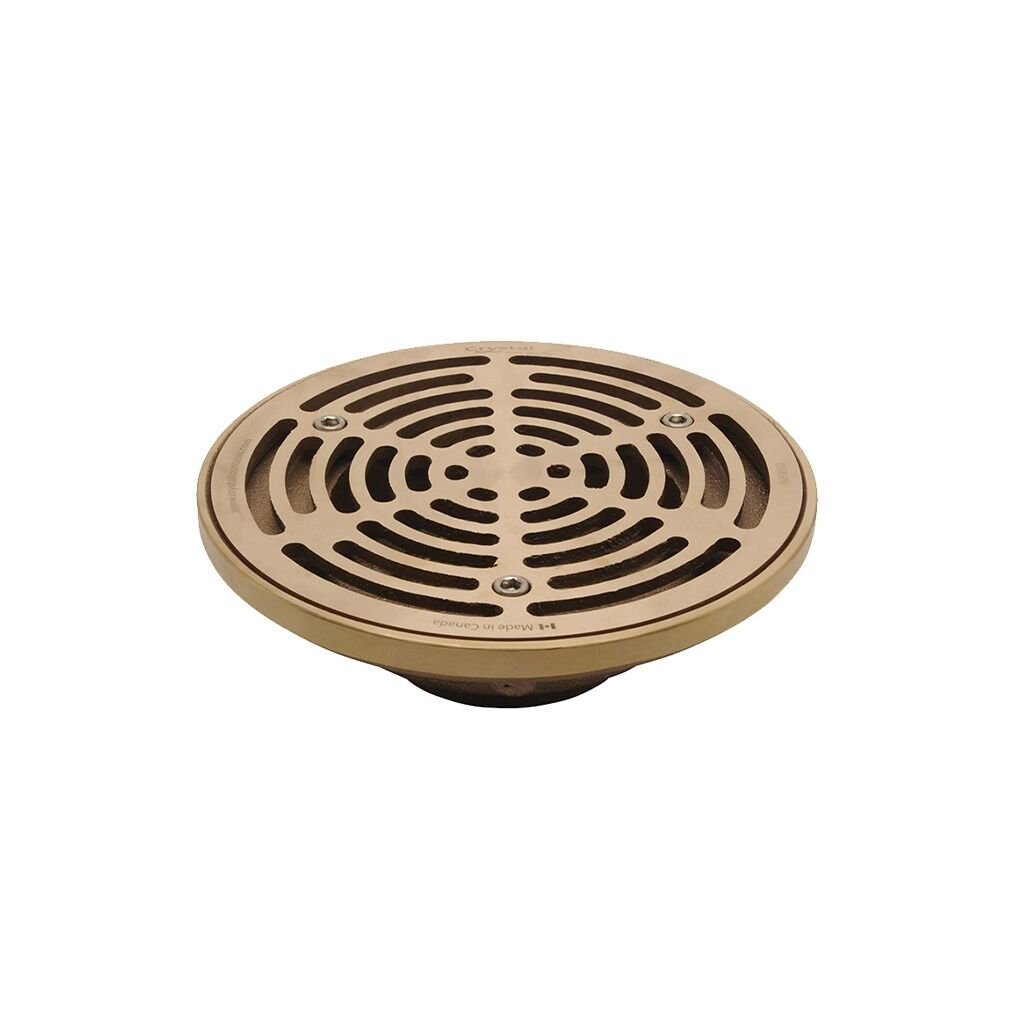

DSB Series – Foot-Friendly Suction Drain
Function
The DSB Series is a suction drain that comes with a foot-friendly flat grate for use in interactive water features.
Specifications
- Available in 3", 4", and 6" inlet sizes
- Openings are no more than 3/8" to prevent toe entrapment
- Flush-mounted for no trip hazards
- Cast bronze
- NPT and BSPT threading available
SKU :
DSB300, DSB400, DSB401, DSB600
Category Suction Drains
Tags 4", Suction Drain, 6", 8", Foot-Friendly, Stainless Steel, Bronze, 2", 3"
DSB-CUTSHEET
203 downloads378.24 KB
DSB-REVIT MODEL
4 downloads676.00 KB
DSB300-ELEV-BL.dwg
13 downloads22.60 KB
DSB300-INSTALLATION
11 downloads167.44 KB
DSB300-PLAN CAD BLOCK
9 downloads97.19 KB
DSB400-ELEV CAD BLOCK
8 downloads22.53 KB
DSB400-INSTALLATION
13 downloads167.35 KB
DSB400-PLAN CAD BLOCK
9 downloads88.65 KB

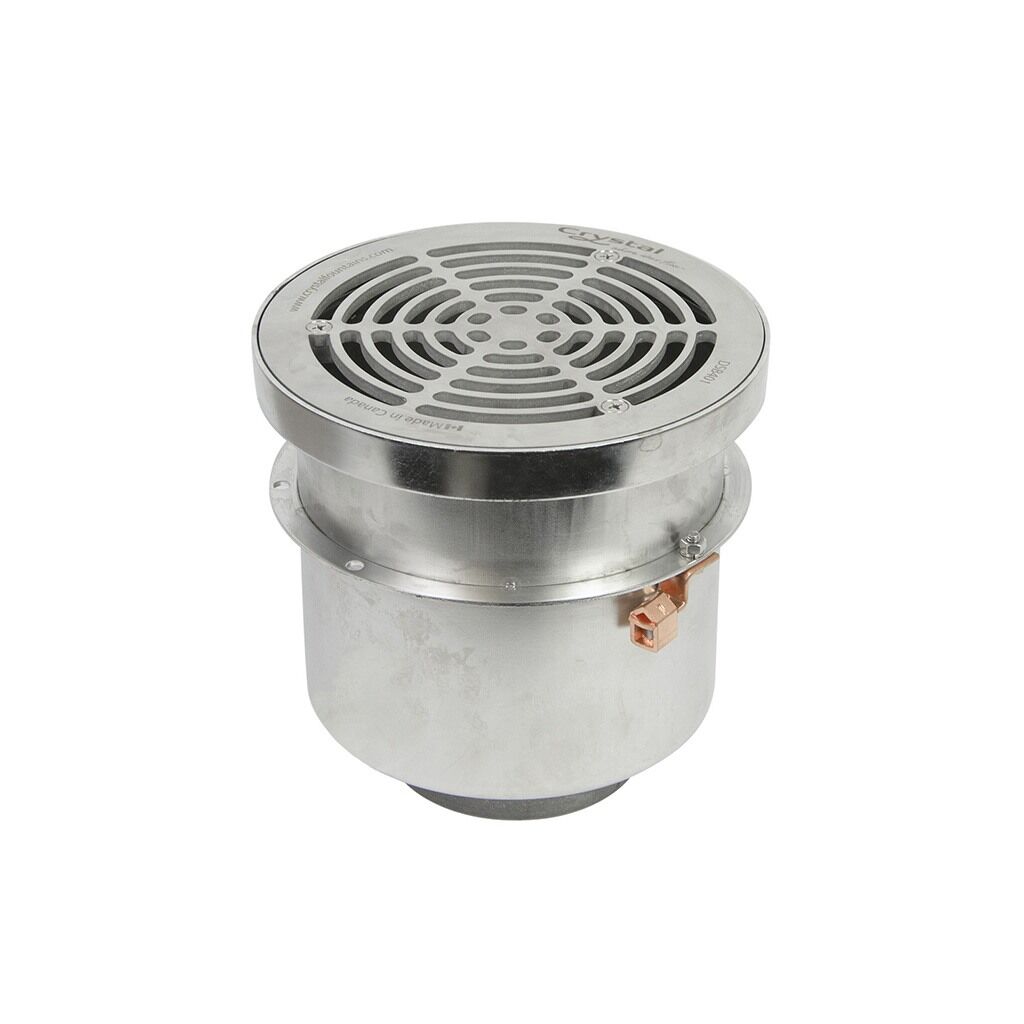

DSB401-CUTSHEET
60 downloads189.80 KB
DSB401-ELEV CAD BLOCK
11 downloads105.81 KB
DSB401-PLAN CAD BLOCK
6 downloads93.07 KB
DSB600-ELEV CAD BLOCK
12 downloads22.63 KB
DSB600-INSTALLATION
22 downloads170.08 KB
DSB600-PLAN CAD BLOCK
18 downloads101.97 KB
