ESF Series – Conduit-Mounted Water Level Sensor
Function
The ESF Series is a conduit-mounted water level sensor which automatically monitors quick fill or safe-off functions. Top access facilitates final float adjustment. Low voltage for safety. Connects to Crystal Fountains ECL series control panel.
Specifications
- Available in 3/4" connection size
- 24VAC
- Two potential operations: Quick Fill or Safe Off
- Cast bronze and brass
- NPT and BSPT threading available
- UL Rated
- IP68 Rated
- Custom sizes available
SKU :

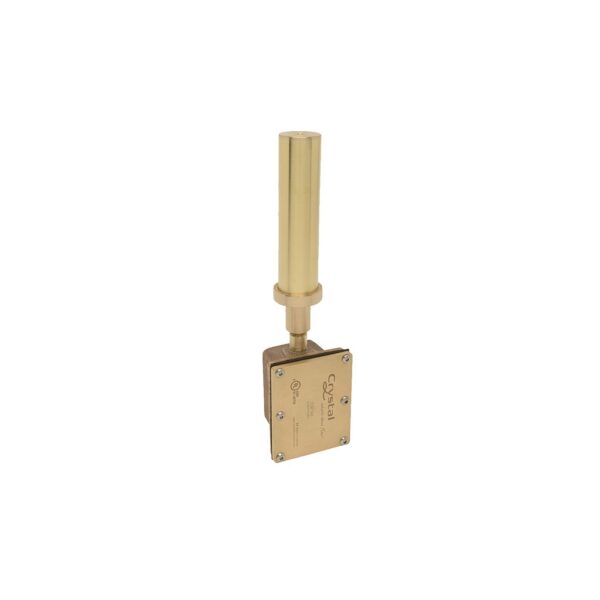

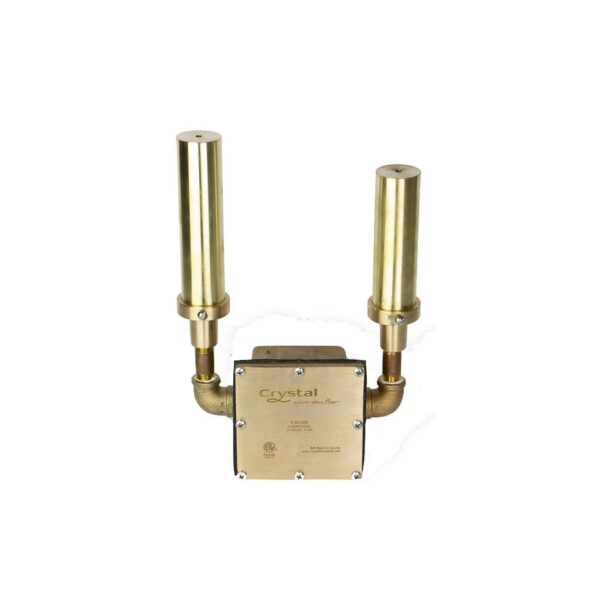

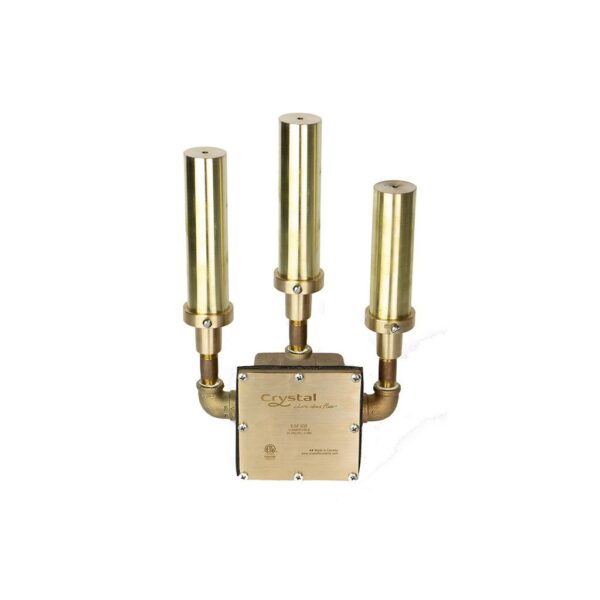

ESF100, ESF200, ESF300
Category Electrical Sensors
Tags Water Level Sensor, 24VAC, Bronze, Conduit-Mounted
ESF100-CUTSHEET
73 downloads607.13 KB
ESF100-ELEV BLOCK
3 downloads53.17 KB
ESF100-INSTALLATION
6 downloads77.66 KB
ESF100-PLAN BLOCK
0 downloads41.48 KB
ESF100-REVIT MODEL
1 downloads352.00 KB
ESF200-CUTSHEET
28 downloads1.13 MB
ESF200-ELEV BLOCK
0 downloads44.00 KB
ESF200-INSTALLATION
1 downloads76.05 KB
ESF200-PLAN BLOCK
0 downloads46.30 KB
ESF200 REVIT MODEL
1 downloads388.00 KB
ESF300 CUTSHEET
14 downloads670.35 KB
ESF300-ELEV BLOCK
1 downloads53.06 KB
ESF300-INSTALLATION
0 downloads81.00 KB
ESF300-PLAN BLOCK
1 downloads44.35 KB
ESF300-REVIT MODEL
1 downloads364.00 KB
