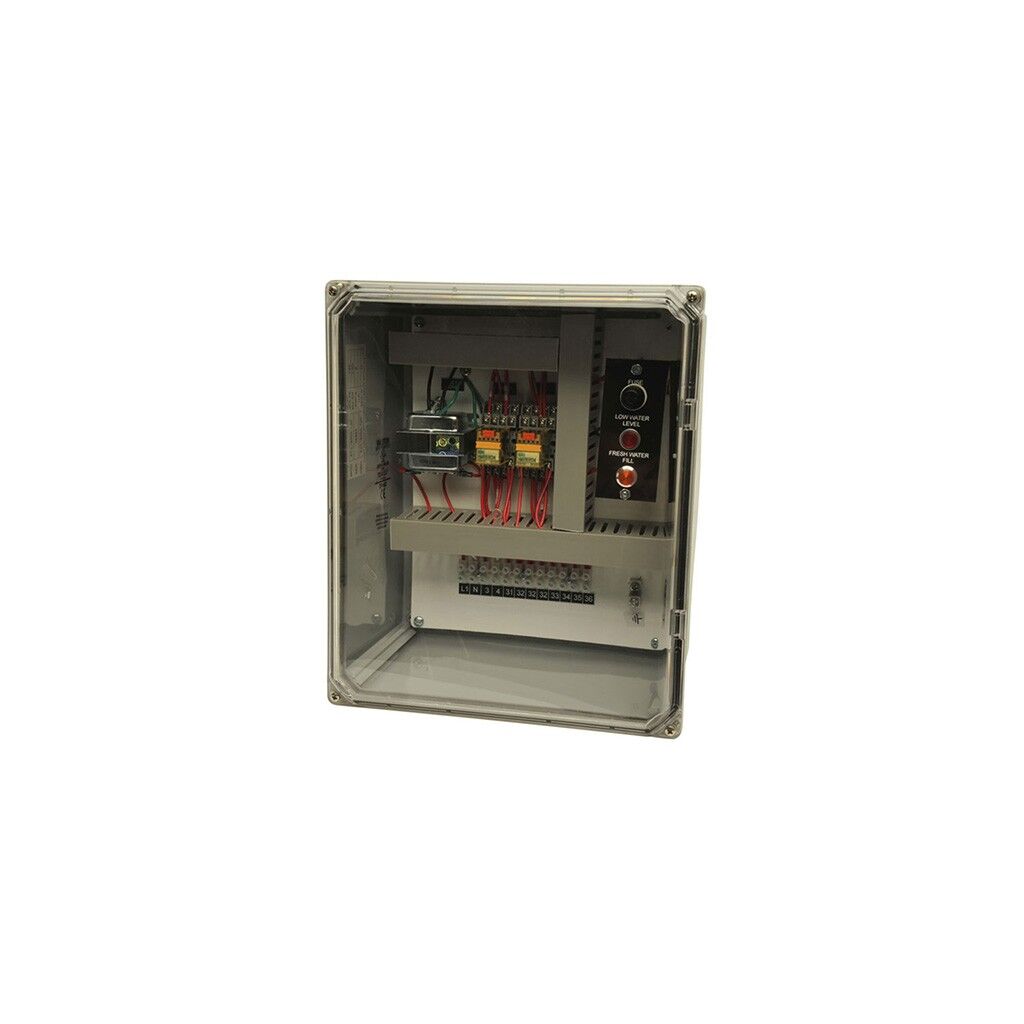

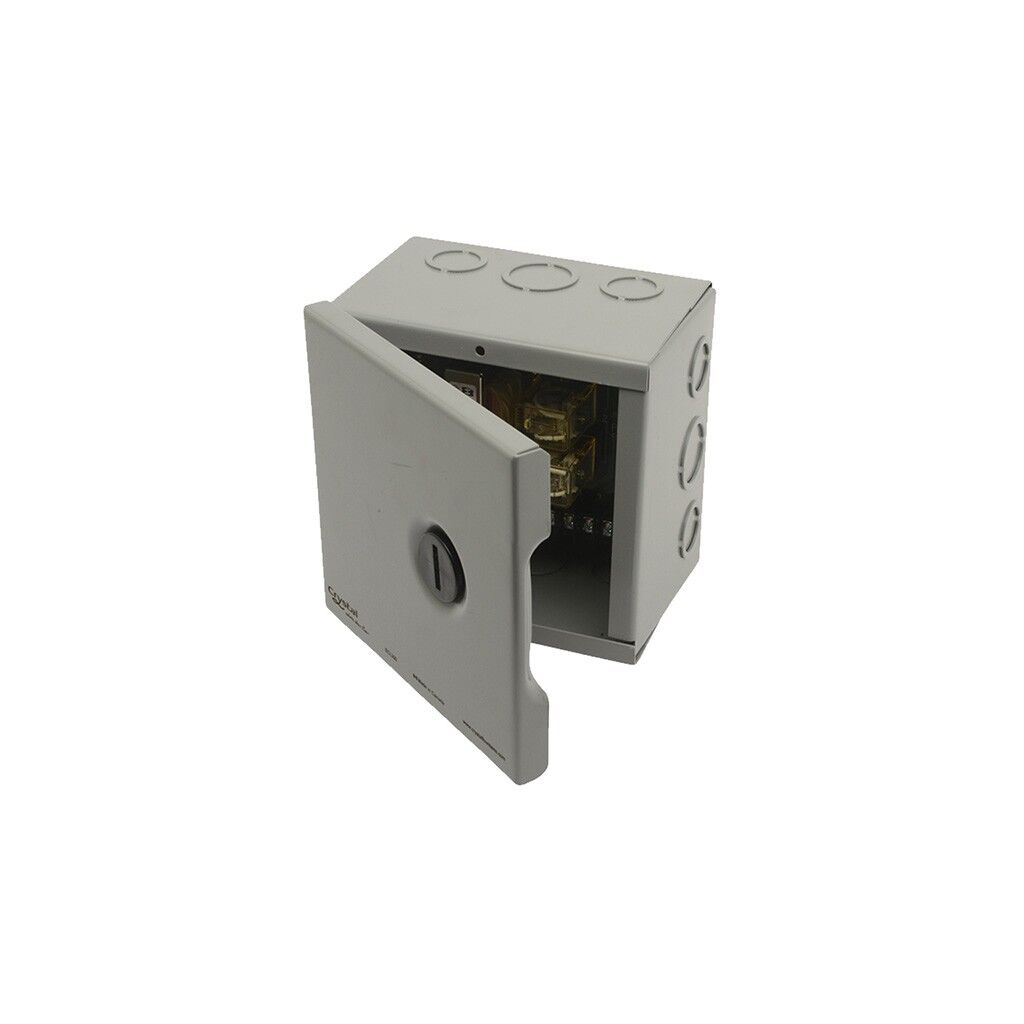

ECL Series – Water Level Control Panel
Function
The ECL Series is a water level control panel that is used in conjunction with the AVQ Solenoid Fill Valve and water level sensors to monitor water levels in a water feature. It is capable of monitoring up to three water level operations depending on version selected. and operates on 120 or 220 Volts. Panel interior NEMA 12 construction with optional weather-proof enclosure.
Specifications
- Includes up to three operations: Quick Fill, Safe Off and Max Level Control
- 120VAC or 240VAC
- UL Rated
ECL-CUTSHEET
96 downloads211.77 KB
ECL-INSTALLATION
55 downloads43.97 KB
ECL-REVIT MODEL
12 downloads432.00 KB
ECL100-ELEV BLOCK
13 downloads47.95 KB
ECL100-PLAN BLOCK
10 downloads43.06 KB
ECL200-ELEV BLOCK
9 downloads47.94 KB
ECL200-PLAN BL.OCK
8 downloads43.06 KB
ECL300-ELEV BLOCK
2 downloads45.14 KB
ECL300-PLAN BLOCK
3 downloads41.55 KB
