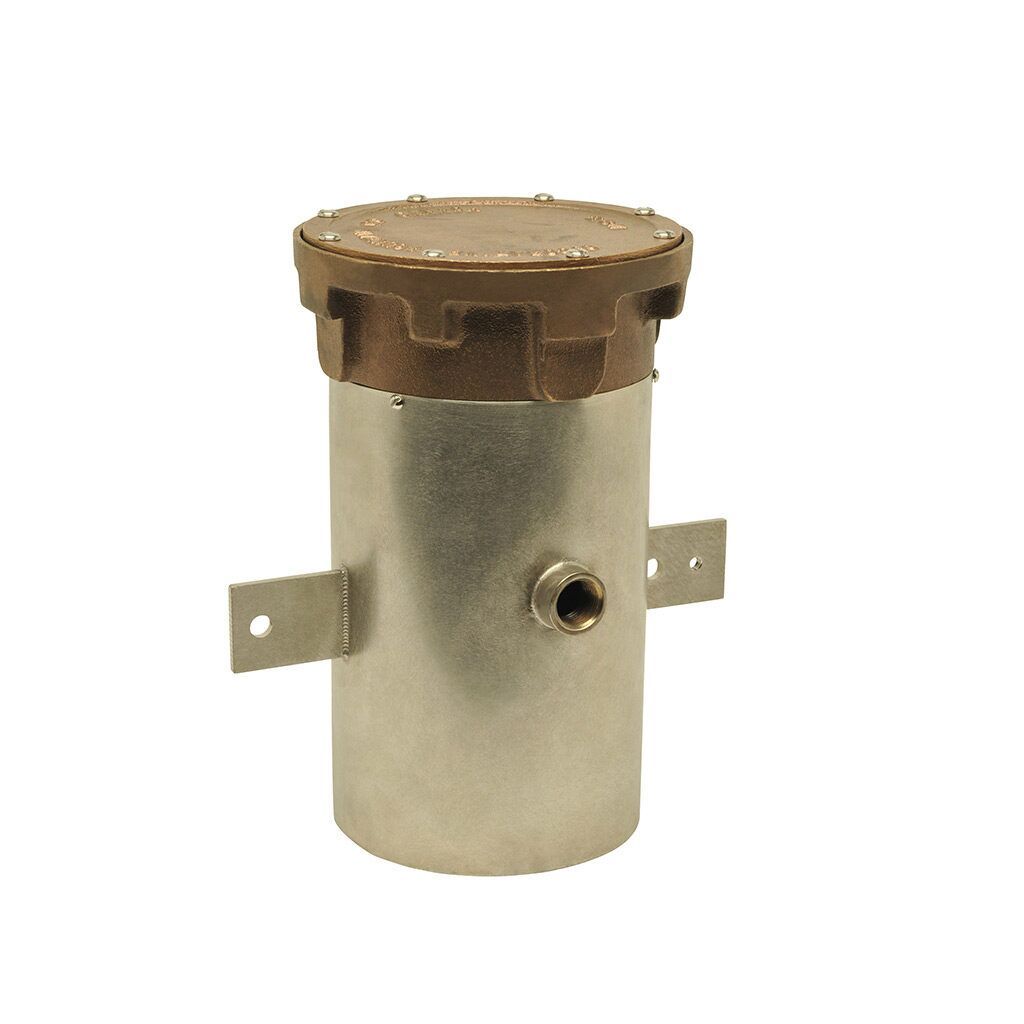

ESD Series – Deck-Mounted Water Level Sensor
Function
The ESD Series is a deck-mounted water level sensor which automatically monitors quick fill and safe-off functions. Water entry and air vent tubes extend through pool wall. Top access facilitates final float adjustment. Low voltage for safety. Connects to Crystal Fountain’s ECL series control panel.
Specifications
- Available in 1/2" connection size
- 24VAC
- Includes up to three operations: Quick Fill, Safe Off and Max Level Control
- Sensor is reed switch enclosed in polypropylene, magnetically actuated float with 1" level adjustment
- Stainless steel, cast bronze and brass
- NPT and BSPT threading available
- UL Rated
- IP68 Rated
SKU :
ESD100, ESD200, ESD300
Category Electrical Sensors
Tags Water Level Sensor, Deck-Mounted, 24VAC, Stainless Steel, Bronze
