WMD104/105 Series – Surface Agitator
Function

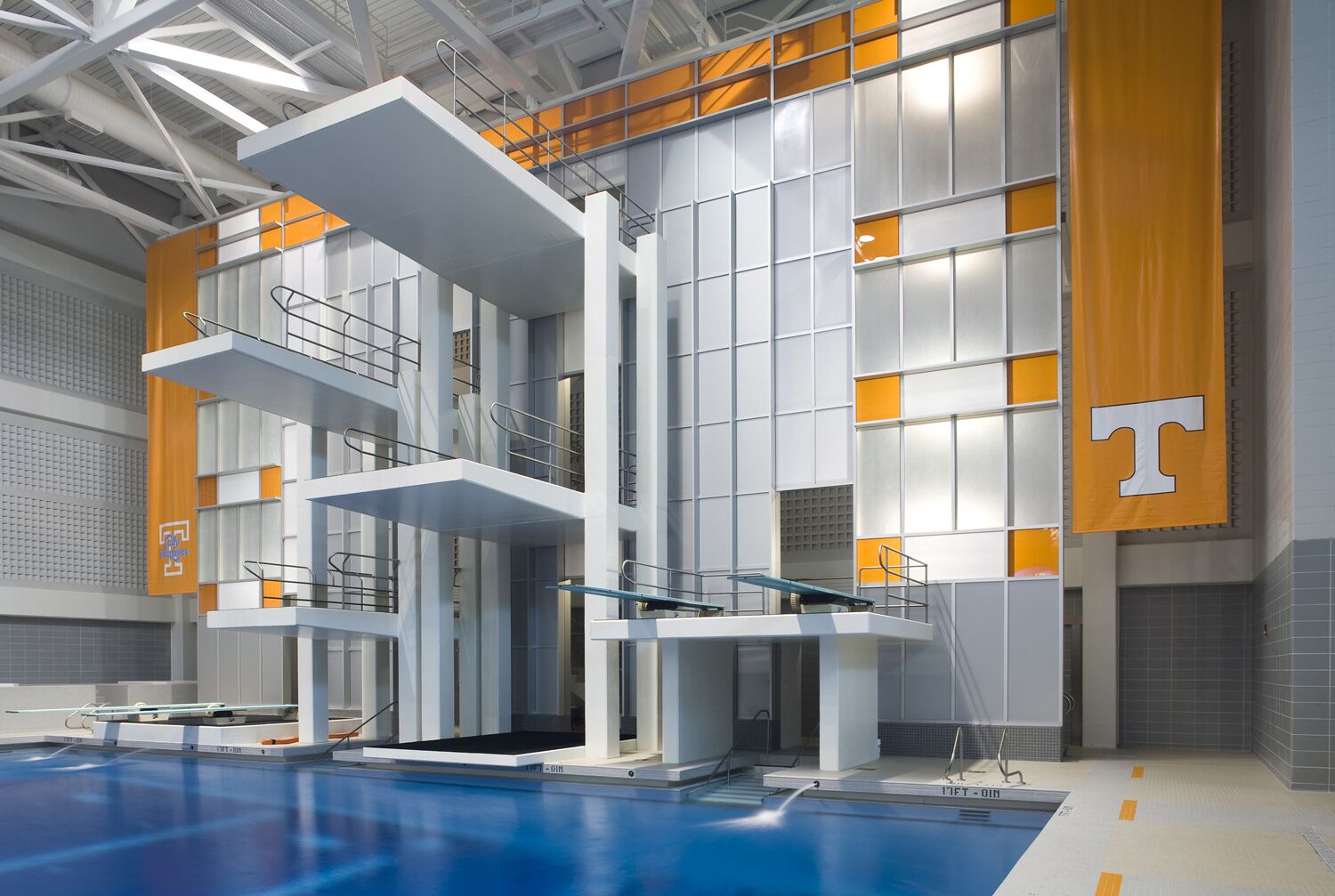

The surface agitator is designed to be flush mounted in diving pools to agitate the water surface increasing visibility during diving. These nozzles can accommodate all gutter configurations from parapet to deck level. Interchangeable face plates are provided.
The WMD104 The stream jet produces a 1/2″ column spray (at 45°) that will strongly agitate the surface of water, while the Crown jet (15°) produces a gentler softer agitation.
The WMD105 stream jet produces a 1/2″ column spray (at 45°) that will strongly agitate the surface of water, while the Crown jet (30°) produces a gentler softer agitation.
Specifications
- Available in 1" inlet size

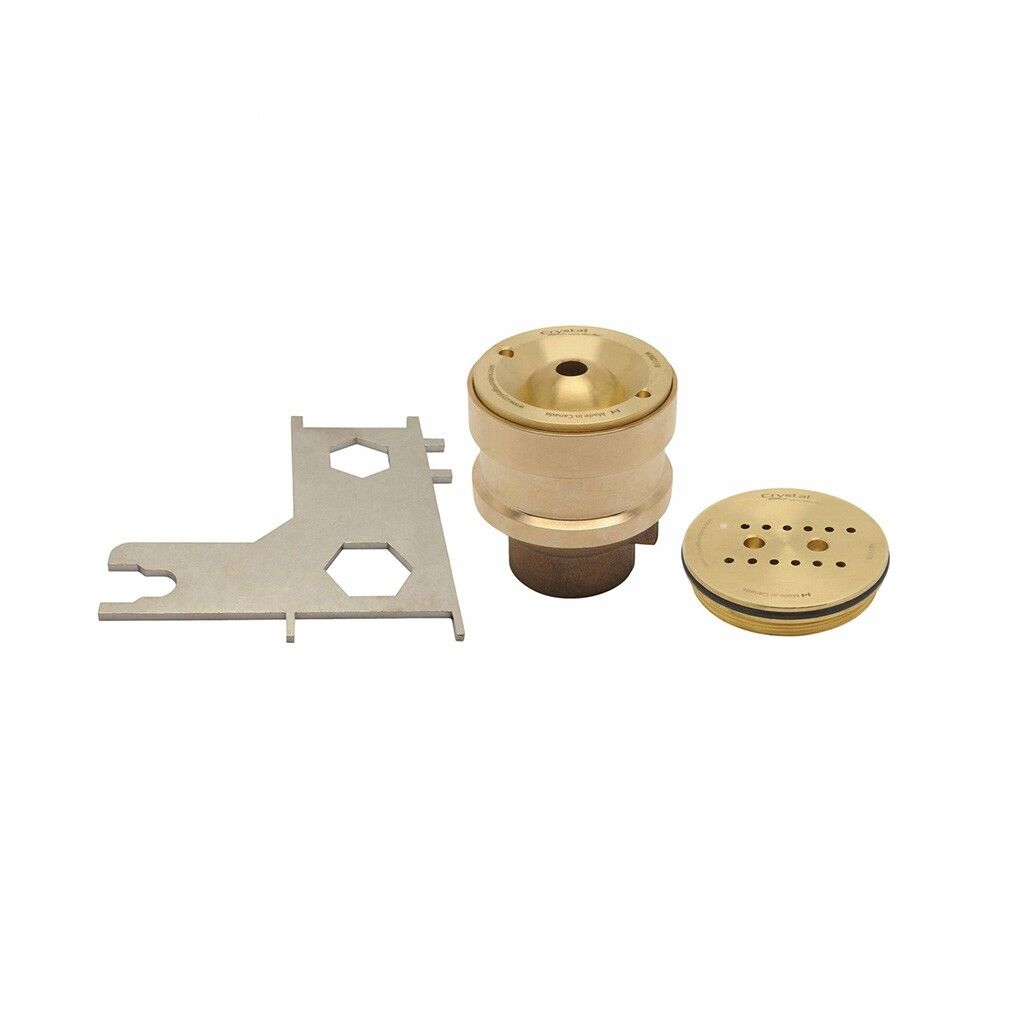

- Comes with 2 nozzles: Stream Jet and Crown Jet
- Angle from the vertical axis from 0° to 45°
- Cast bronze and brass
- NPT and BSPT threading available
- Water level independent
SKU :
WMD104, WMD105
Category WMD Series
Tags Clear Stream, Plume, Commercial Pool, Diving Pool, Agitator, Bronze, Nozzle
WMD104-CUTSHEET
117 downloads475.24 KB
WMD104-ELEV CAD BLOCK
1 downloads28.03 KB
WMD104-INSTALLATION
5 downloads85.59 KB
WMD104-PLAN CAD BLOCK
1 downloads28.97 KB
WMD104-REVIT MODEL
2 downloads484.00 KB
WMD105-CUTSHEET
24 downloads478.64 KB
WMD105-EXPLODED VIEW
1 downloads131.90 KB
