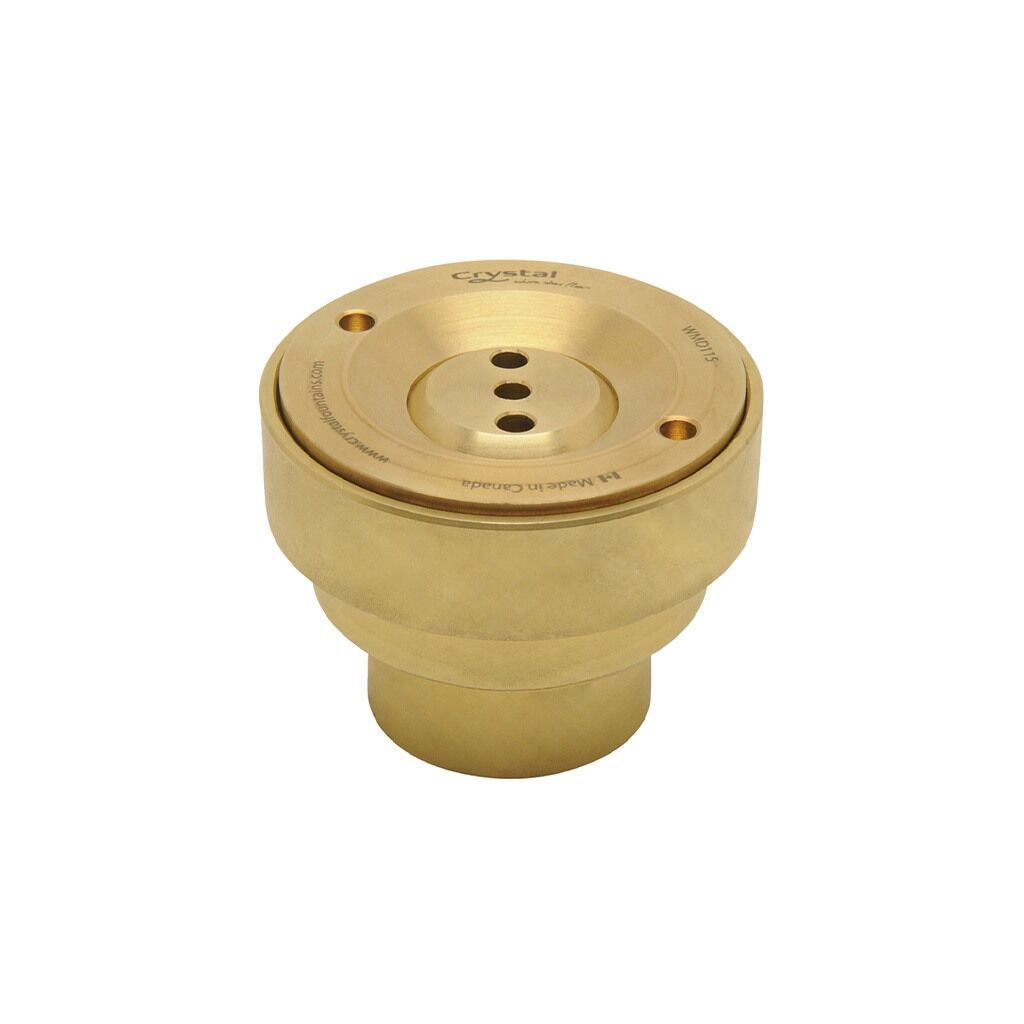

WMD115 Series – Tristream Jet
Function

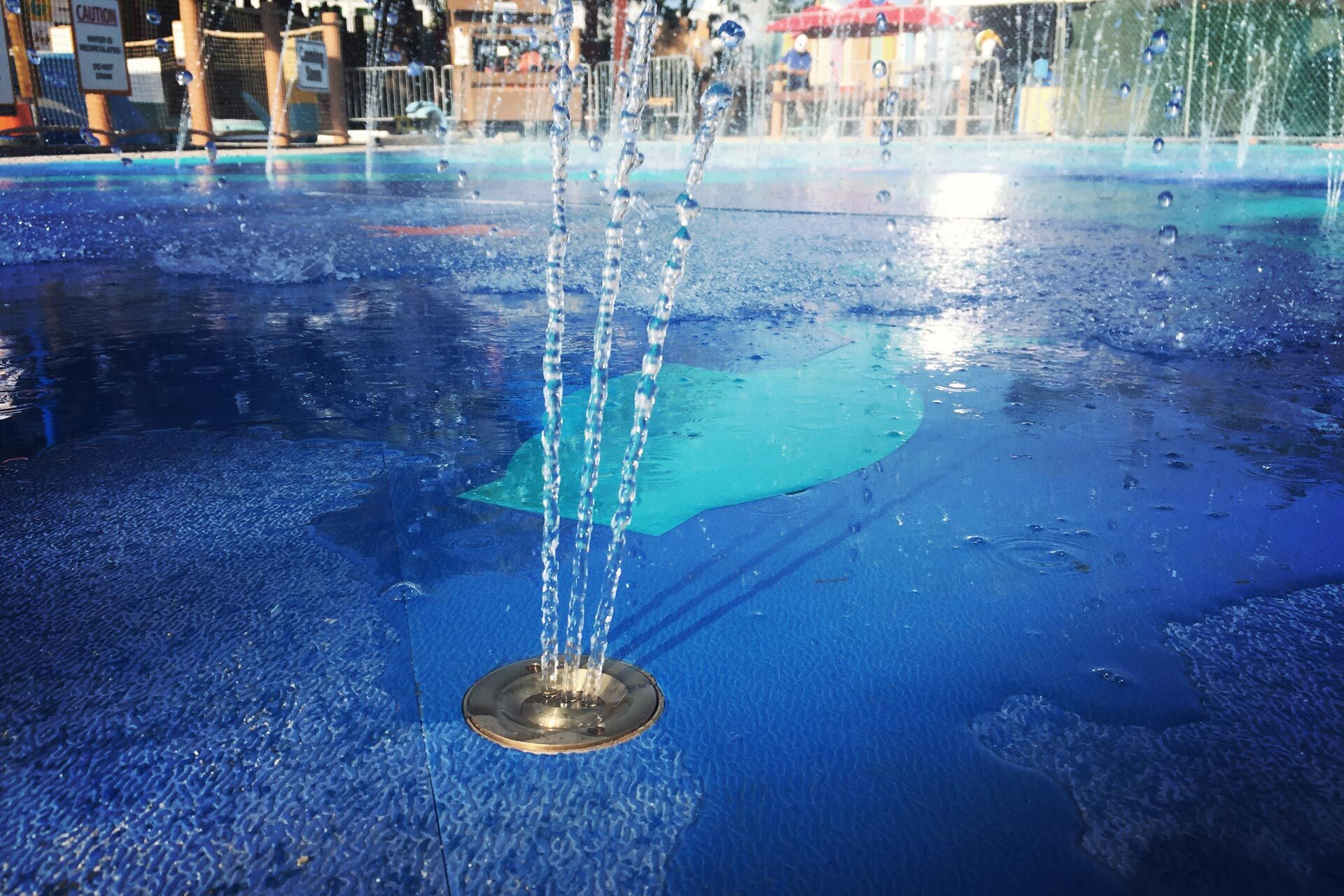

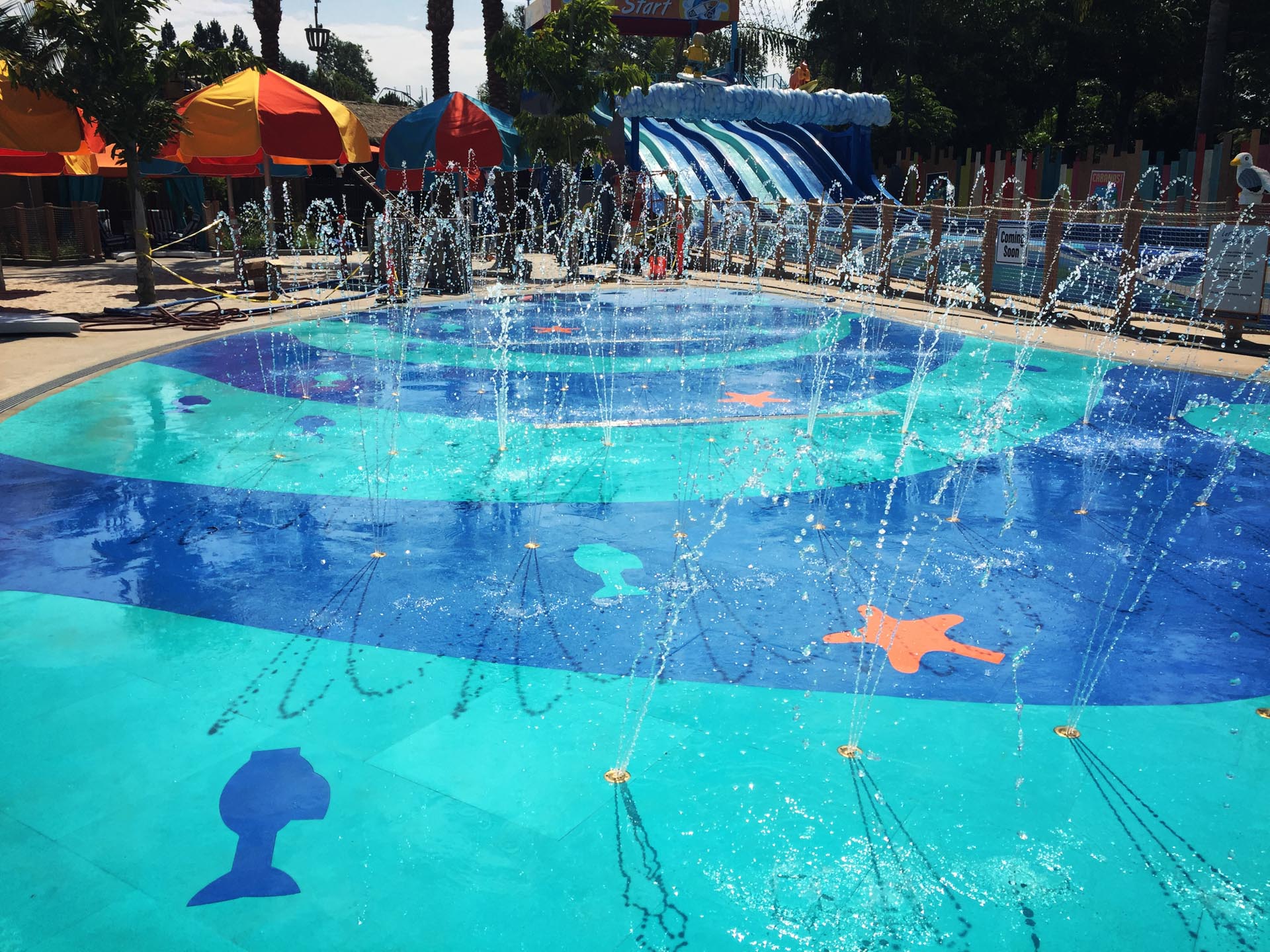

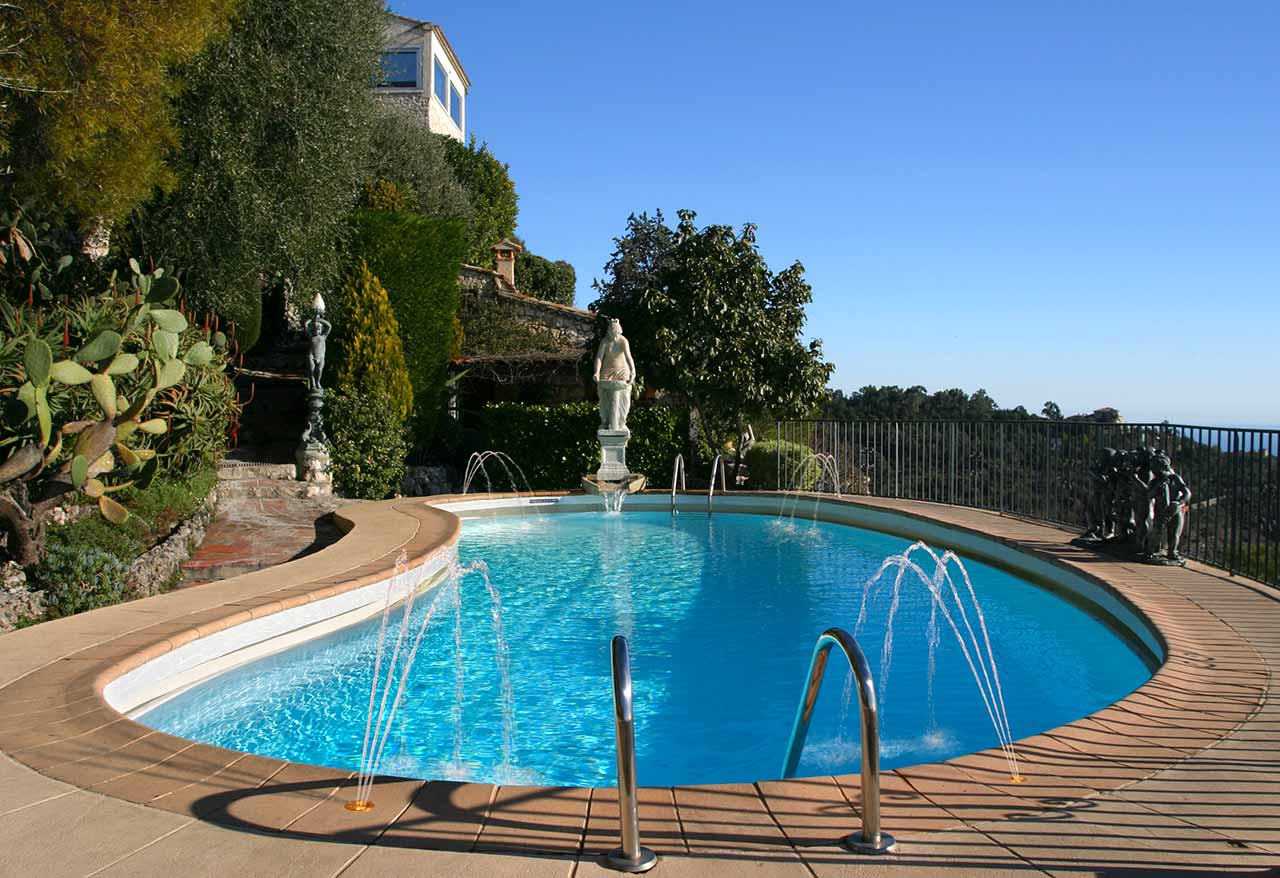

The WMD Series (Tristream Jet) is a nozzle designed for interactive play or swimming pool perimeters. The nozzle creates 3 x 3/16″ clear streams of water and is directionally adjustable (25° from center) so the water’s direction can be optimized depending on preference or application.
Specifications
- Available in 1" inlet size
- 3 x 3/16" water stream
- Angle from the vertical axis from 0° to 15°
- Can be installed vertically or horizontally
- Foot friendly faceplate to avoid toe entrapment
- Cast bronze and brass
- NPT and BSPT threading available
- Water level independent
SKU :
WMD115
Category WMD Series
Tags Nozzle, Swimming Pool, Clear Stream, Plume, Bronze, Splash Pad
WMD115-CUTSHEET
119 downloads467.94 KB
WMD115-ELEV CAD BLOCK
3 downloads37.38 KB
WMD115-INSTALLATION
1 downloads290.30 KB
WMD115-PLAN CAD BLOCK
4 downloads39.88 KB
WMD115-REVIT MODEL
1 downloads564.00 KB
