SUBMERSIBLE POWER AND DMX
Function

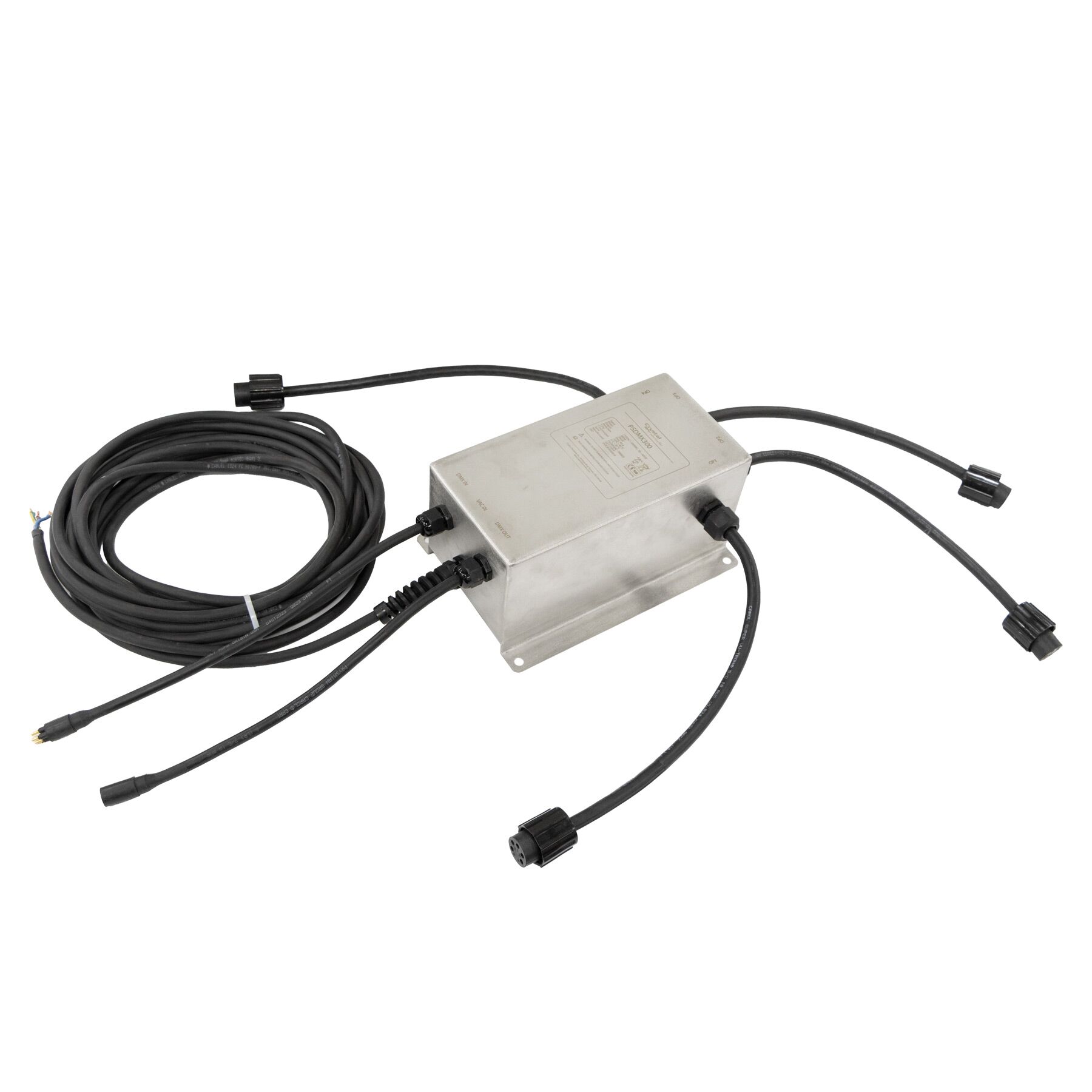

Crystal Fountains PSDMX300 is an IP68 submersible two-in-one device designed to supply DC power and DMX512 control signals to Crystal Fountains luminaires, submersible pumps and sequencing devices. The use of wet-mateable connectors on the VDC outputs and DMX connections allow this device to be safely connected underwater,thus making it simple to install and service in a time-efficient manner. The pickleand passivated 316 Stainless Steel construction makes it suitable for fresh and chlorinated water applications. In addition, the SDMX300 offers self diagnosing data, which can only be accessed through WaterLab diagnotics software.
Specifications
- Input Voltage: 110-240 VDC
- Power: 300W
- Protocol: DMX-RDM
- Dimensions: 254x181x122 mm
- Temp. Wet Use: 4 to 35°C
- Temp. Dry Use: -10 to 40°C
- Material: Stainless Steel (AISI316)
SUBMERSIBLE POWER & DMX SUPPLY – CUTSHEET
SUBMERSIBLE POWER & DMX SUPPLY -INSTALLATION
SUBMERSIBLE POWER & DMX SUPPLY – REVIT
