ESG Series – Conduit Mounted Level Sensor
SHARE:

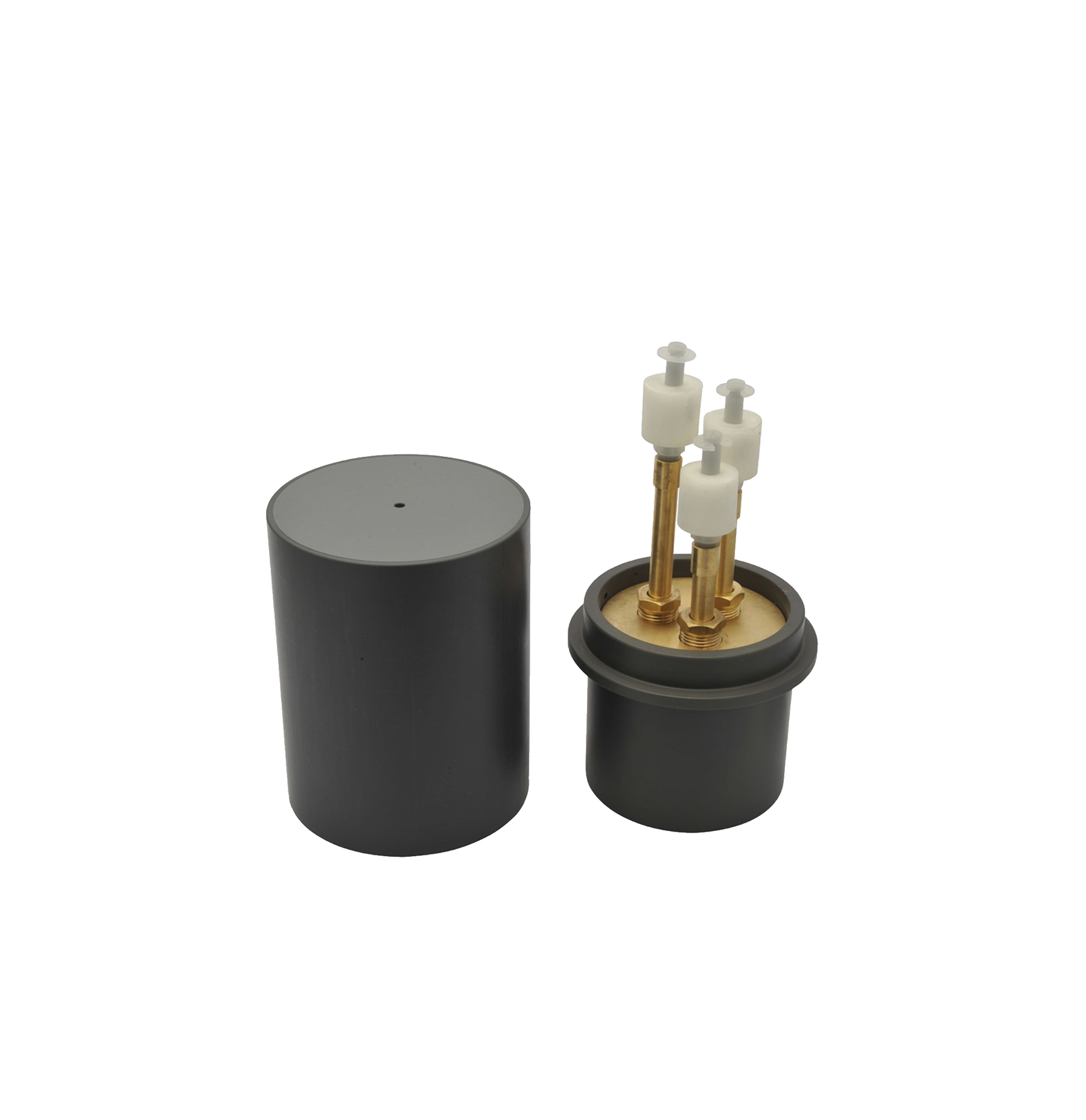

ESG Series – Conduit Mounted Level Sensor
Function
Conduit mounted electronic water level sensor automatically monitors quick fill or safe-off functions. Low voltage for safety. Connects to Crystal Fountains’ “ECL” series control panel. Install vertically.
Specifications
- Construction material for body and cover: PVC
- Additional materials: brass, copper, and stainless steel
- Sealing: fitted with neoprene gasket and seal
- Sensor type: reed switch
- Sensor enclosure: polypropylene
- Actuation method: magnetically actuated float
- Float level adjustment: 1-inch level adjustment
SKU : ESG100, ESG200, ESG300 Category Electrical Connections
ESG-CAD BLOCKS
11 downloads42.83 KB
ESG CUTSHEET
105 downloads1.19 MB
ESG100 CUTSHEET
103 downloads1.19 MB
ESG100-INSTALLATION
32 downloads60kb
ESG200 CUTSHEET
108 downloads1.19 MB
ESG200-INSTALLATION
29 downloads60kb
ESG300 CUTSHEET
103 downloads1.19 MB
ESG300-INSTALLATION
31 downloads60kb
ESG-REVIT MODEL
1 downloads384
