EBJ Series - Underwater Junction Box
Function
The EBJ Series is a submersible conduit-mounted junction box for underwater electrical connections.
Specifications
- Models can connect betweem 1-16 devices
- Used with EGS Series cord seals
- Ideally used for lights with 16/3 cable.
- Cast bronze
- NPT and BSPT threading available
- IP68 Rated
- UL Rated
- Custom hole patterns available
SKU :

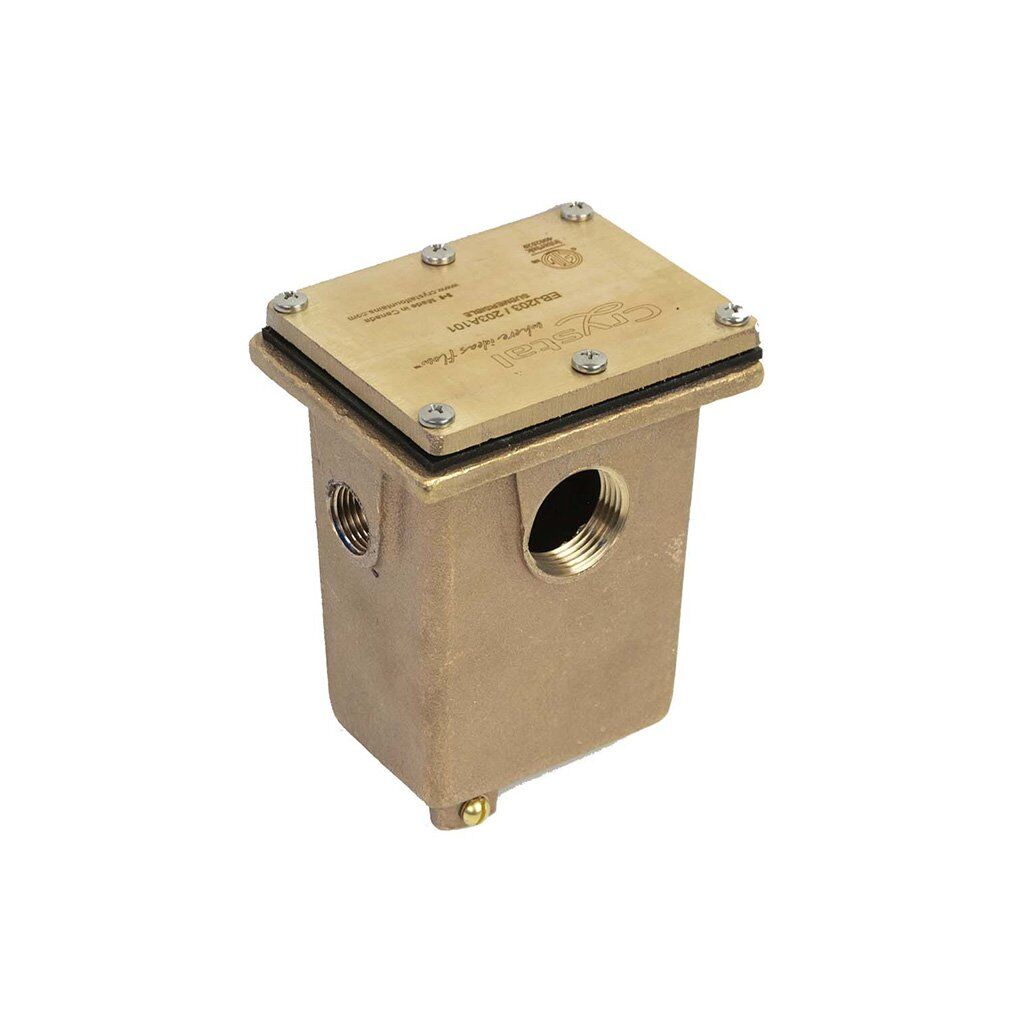

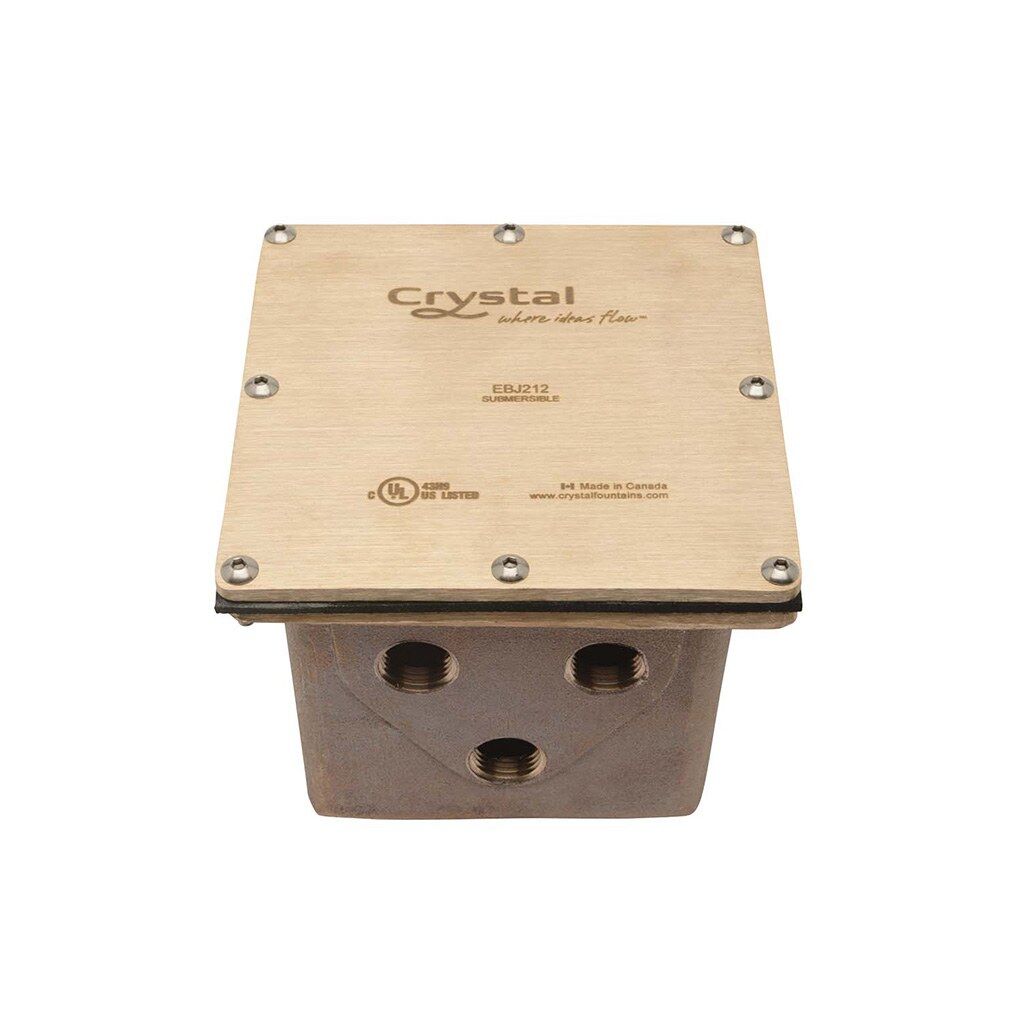

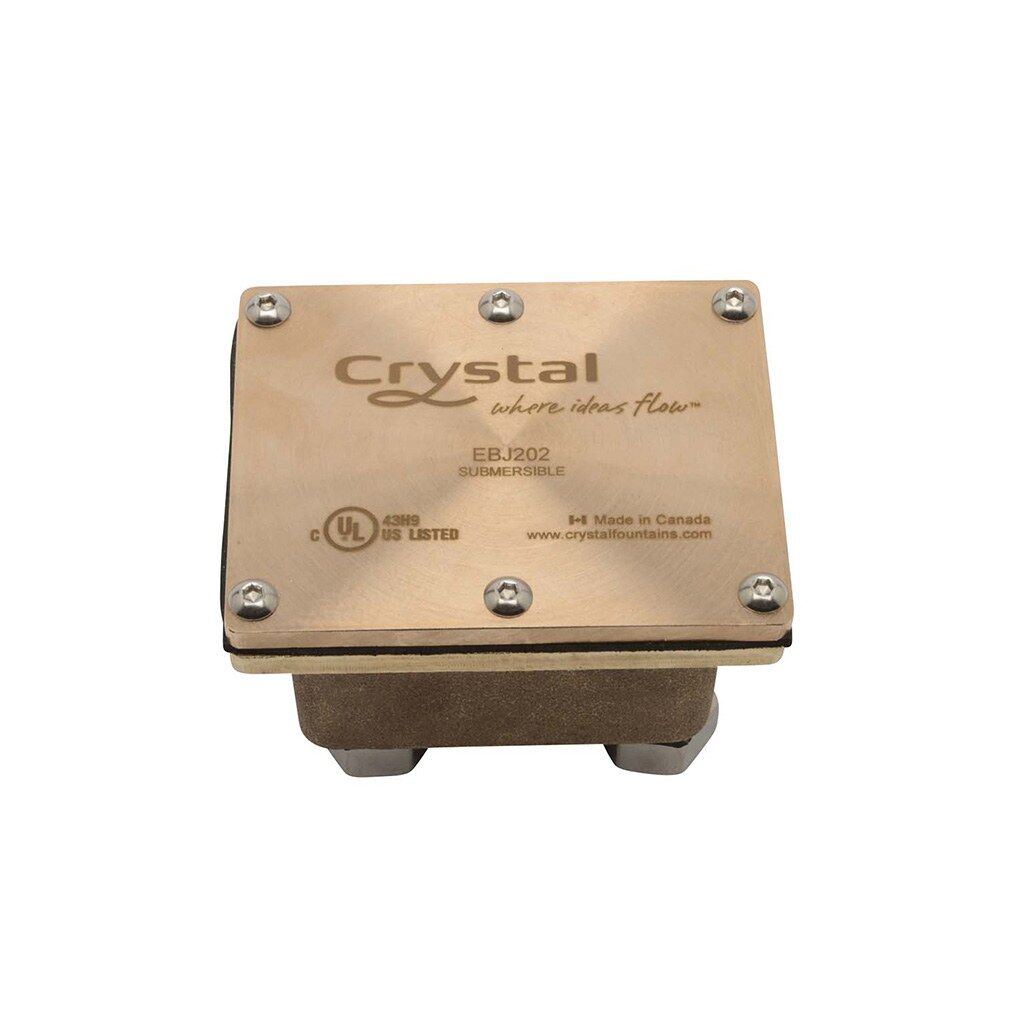

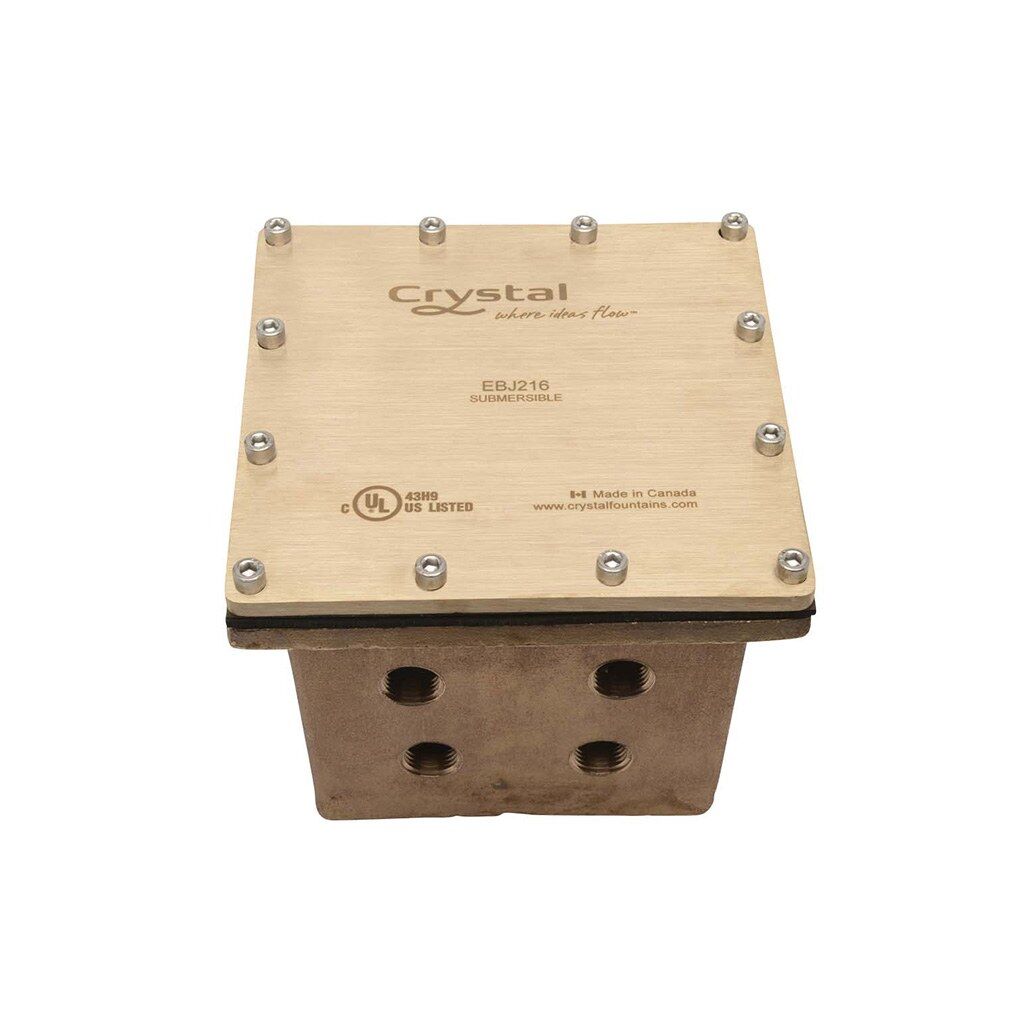

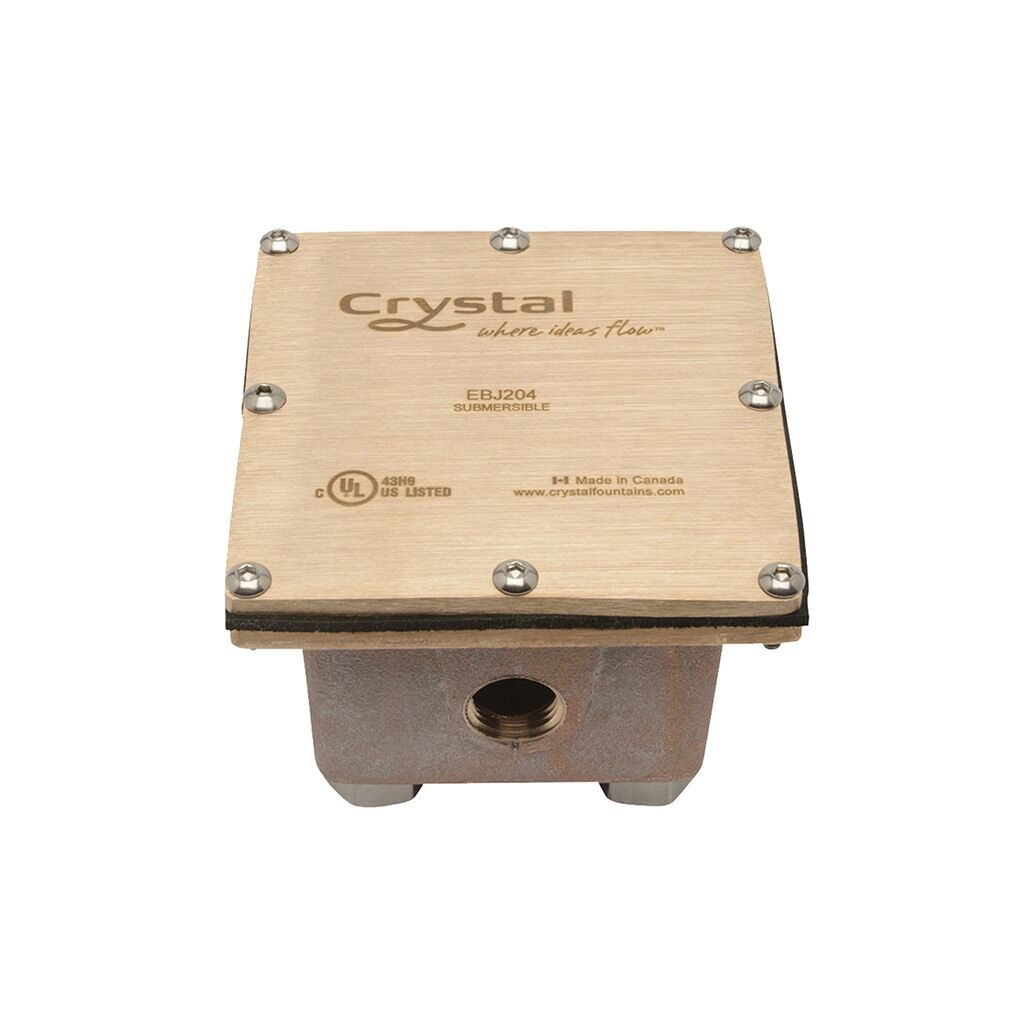

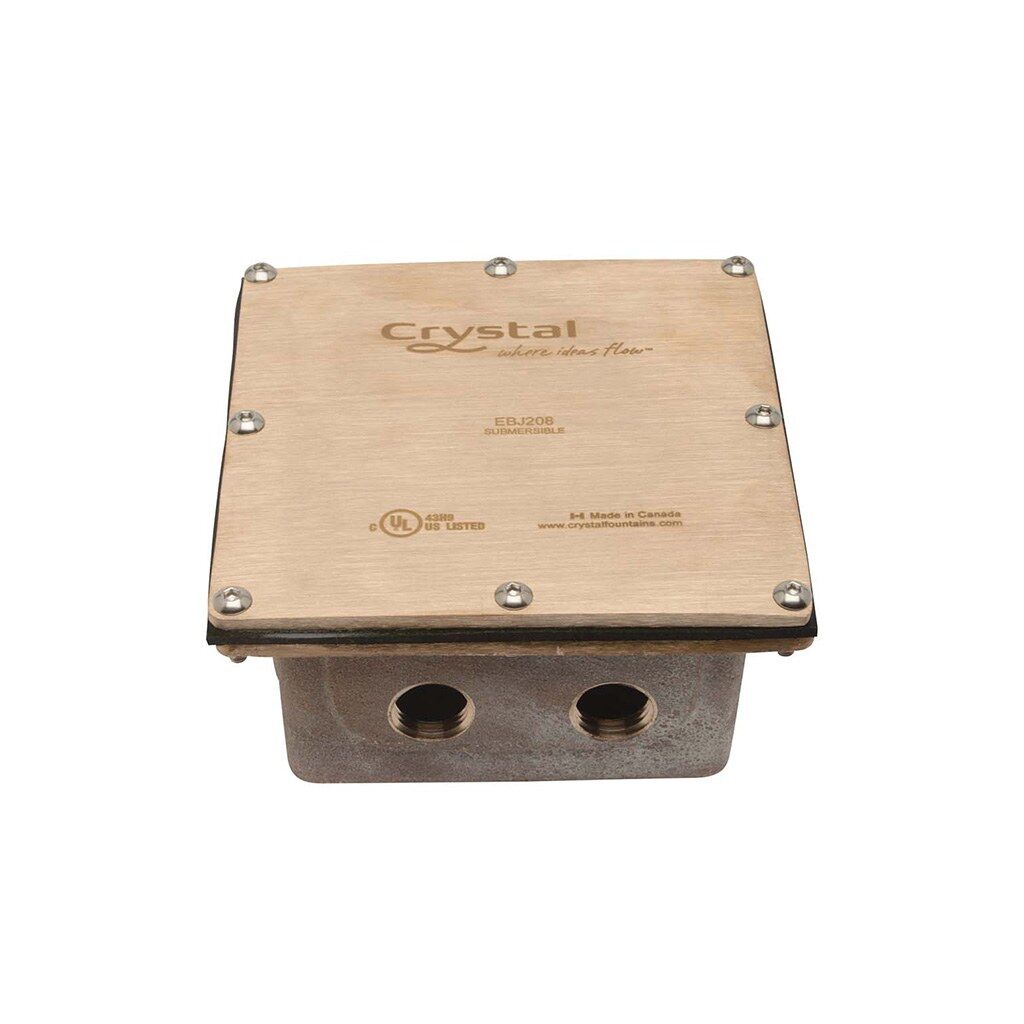

EBJ202, EBJ203, EBJ204, EBJ208, EBJ212, EBJ216
Category Underwater Junction Boxes
Tags Underwater Junction Box, Conduit Mounted, Bronze
