LED200 Series – Drive Over Rated ChoreoSwitch
SHARE:
LED200 Series – Drive Over Rated ChoreoSwitch
Function

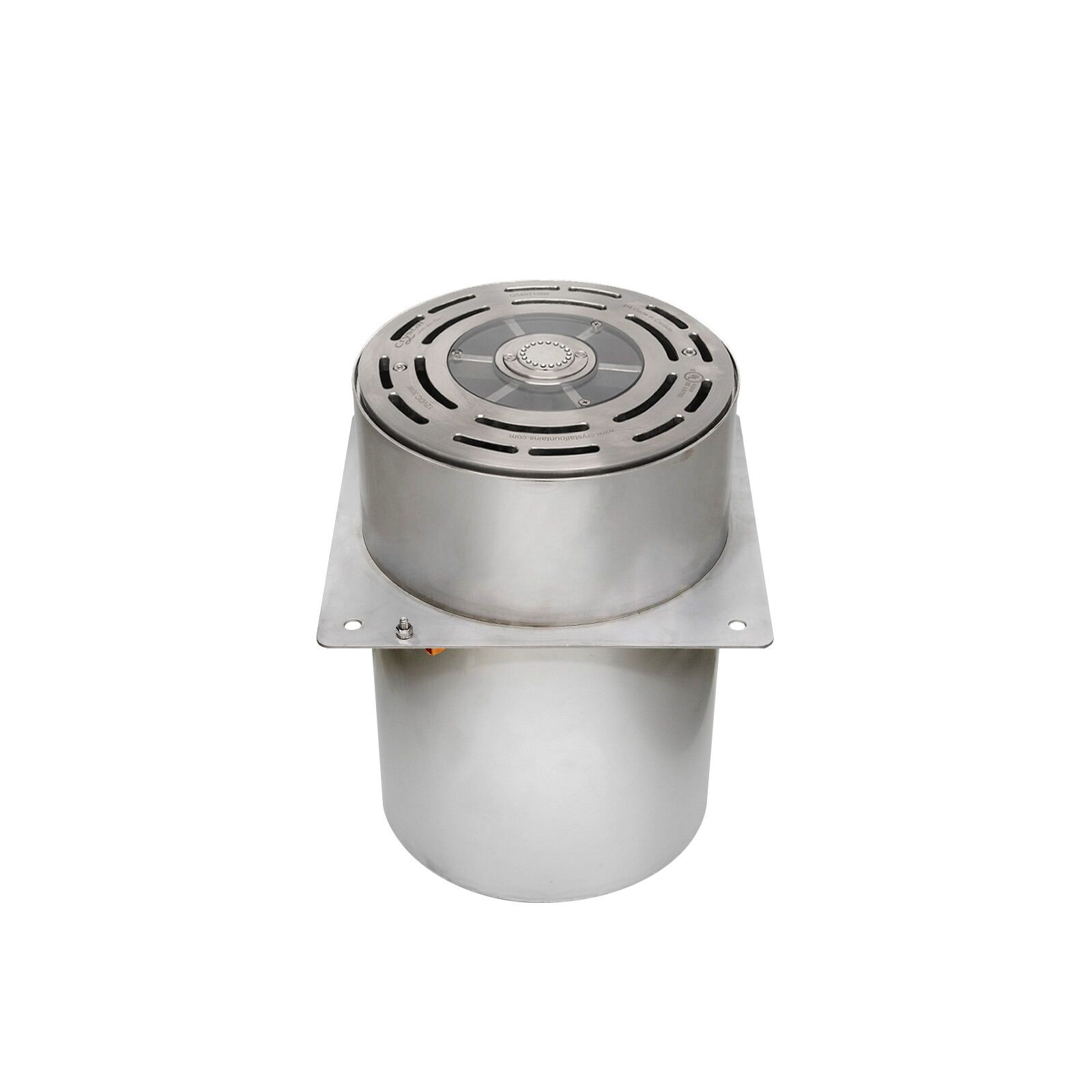

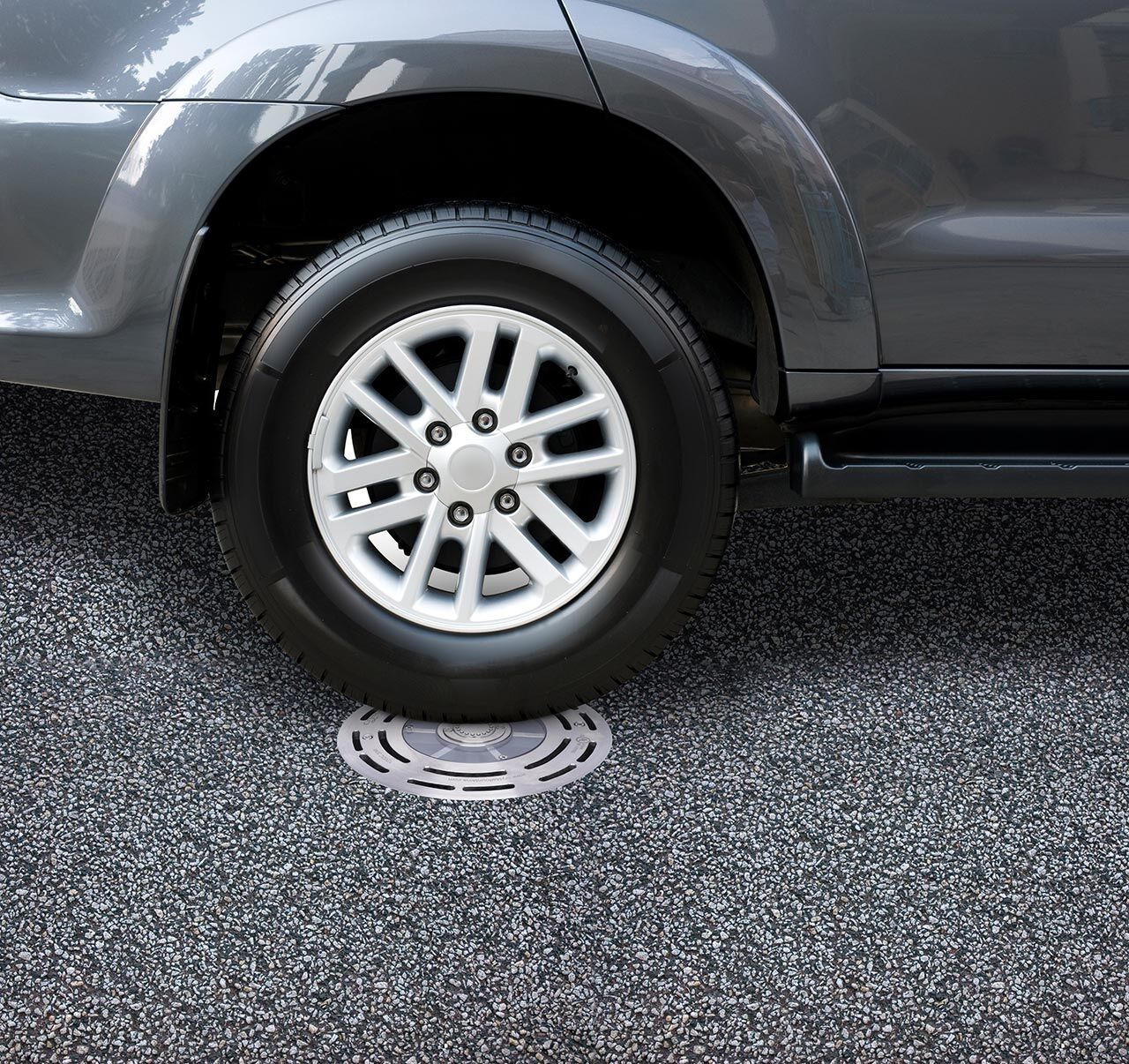

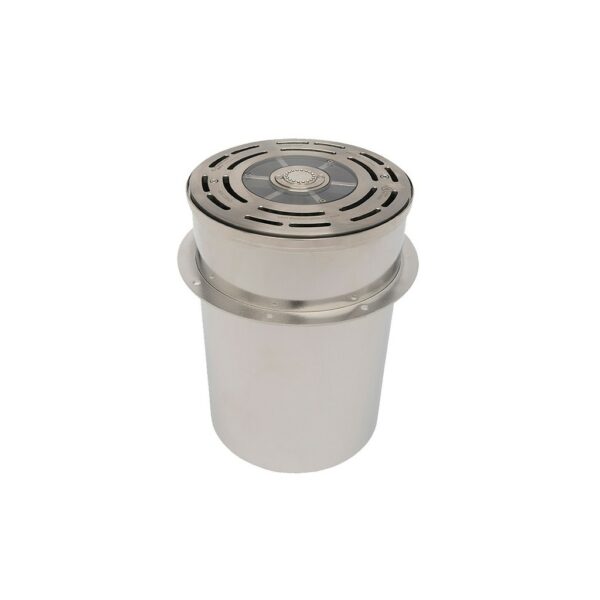

The LED200 Series sequencing ChoreoSwitch produces exciting water and light effects for interactive play and was designed specifically to be installed in locations where small service vehicles (up to 14,000lb or 6,500kg) need to operate and may drive over the nozzles. Add in a variable frequency drive (VFD) pump to produce varying heights. The LED light and nozzle assembly comes pre-wired in a stainless steel niche for easy installation
Specifications
- RGBW, RGB, Cool White, Warm White, or Tunable White (3000k to 5000k)
- Designed to meet FACTAC250 code compliance (up to 14,000lb or 6,500kg)
- Stainless steel
- 35W
- 12VDC or 24VDC
- High switching speeds up to 10 times per second, with no water hammer
- Foot friendly faceplate with 3/8" (10mm) openings allow for drainage and safety
- RDM - Remote Device Management enabled
SKU :
LED201 (Cool White), LED200 (RGB), LED200041 (RGBW), LED200043 (Tunable White), LED200044 (Warm White)
Category Interactive
Tags 24VDC, Programmable, Slab Hanger, RGBW, Sequencing, LED, RGB, RDM, Playdeck, White, Splash Pad, DMX, Drive Over Rates, Light, FACTAC250, Stainless Steel, Tunable, 12VDC
LED20x-ALL CAD BLOCKS
7 downloads2.16 MB
LED200 SERIES-CUTSHEET
121 downloads1.99 MB
LED20x-REVIT MODEL
2 downloads804.00 KB
LED201-REVIT MODEL
3 downloads460.00 KB
LED20x – INSTALLATION
19 downloads351.13 KB
