SUBMERSIBLE DMX PUMP 230
Function

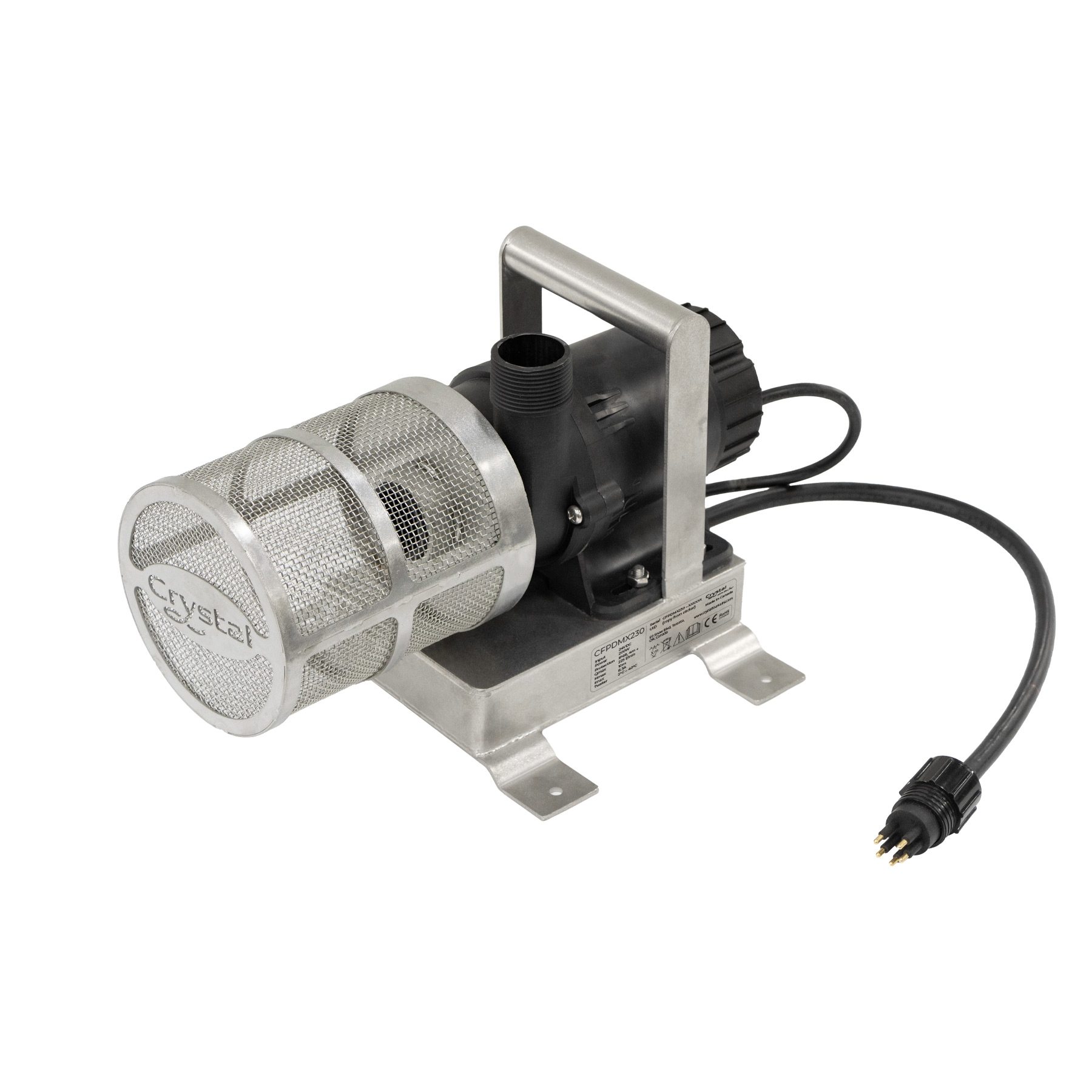

The CFPDMX230 is a brushless 24V DC motor RDM/DMX enabled pump. Intended to be used with Crystal Fountains’ nozzles, LED free standing and slab hanger luminaires. The high control resolution of this pump provides extremely accurate and repeatable jet heights.
Specifications
- Input Voltage: 24 VDC
- Power: 200W (Pump)
- Min Water Level: 293 mm
- Water Temp: 2 ~ 40 °C
- Inlet Diameter: G1-1/4 in
- DMX Channels: 2 (ON/OFF and Speed)
- Material: 316 Stainless Steel and Plastic
- Currently not UL Rated
Product Recommendations
[repeater_count field=”product_recommendations”]
Product Title | Product Effect | Product Link |
---|---|---|
NLC130 | Column Effect | View Product |
NEA078 | Clear Stream | View Product |
NIF100 | Hallow Effect | View Product |
SWD Series | Articulating | View Product |
SKU : CFPDMX230-D101 Categories cfpdmx-230, Submersible Pumps
CFPDMX230 – CUTSHEET
94 downloads224.66 KB
CFPDMX230- ELEV CAD
35 downloads56.38 KB
CFPDMX230 -INSTALLATION
87 downloads224.66 KB
CFPDMX230- PLAN CAD
35 downloads56.38 KB
CFPDMX230-REVIT
14 downloads1.12 MB
