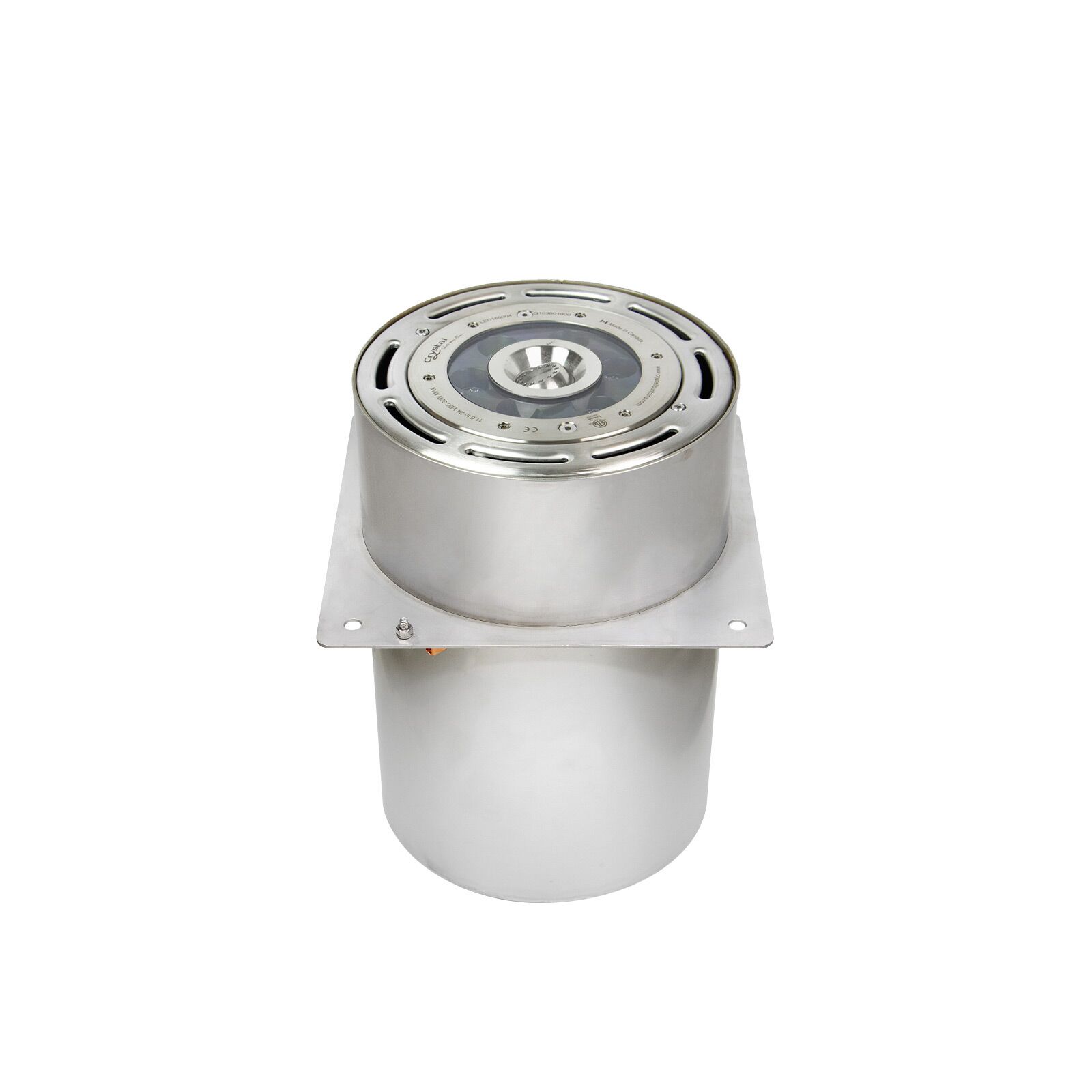

SWD Series – ESpyra
Function
Enhance the visual appeal of your water feature using Crystal’s ESpyra. With Espyra, you have the ability to craft an entirely different and awe-inspiring water effect for your feature, setting your designs apart from the rest. Fueled by Crystal’s ChoreoSwitch® technology, Espyra is an illuminated sequencing product that can be electronically articulated up to 15° from vertical in any direction allowing for 360° of control . Watch it twirl, wave and dance for new levels of interactive shows! With the incorporation of our RGBW or Tunable white LED lights, extend the show into the evening and night.
Specifications
- RGBW, RGB, Cool White, Warm White, or Tunable White (3000k to 5000k)
- Stainless steel
- 78W
- 12VDC to 24VDC
- Angle from the vertical axis from 0° to 15°
- You can rotate the water effect up to 360°
- Switching speeds up to 3 times per second, with no water hammer
- Foot friendly faceplate with 3/8" (10mm) openings allow for drainage and safety
- Water level independent
SKU : SWD300, SWD320, SWD301, SWD321, SWD340, SWD342, SWD341, SWD343 Category Interactive Tags Niche, 12VDC, Programmable, 24VDC, RGBW, Sequencing, LED, RGB, RDM, Playdeck, White, Splash Pad, DMX, Rotating, Light, Oscilating, Stainless Steel, Tunable
SWD300-320-CUTSHEET
28 downloads581.65 KB
SWD300-320-INSTALLATION
13 downloads581.65 KB
SWD300-320-REVIT MODEL
9 downloads1.12 MB
SWD340-342-CUTSHEET
16 downloads581.65 KB
SWD340-342-INSTALLATION
10 downloads581.65 KB
SWD340-REVIT MODEL
5 downloads1.12 MB
