LEDPS510 Series – Power and Data Supply
SHARE:

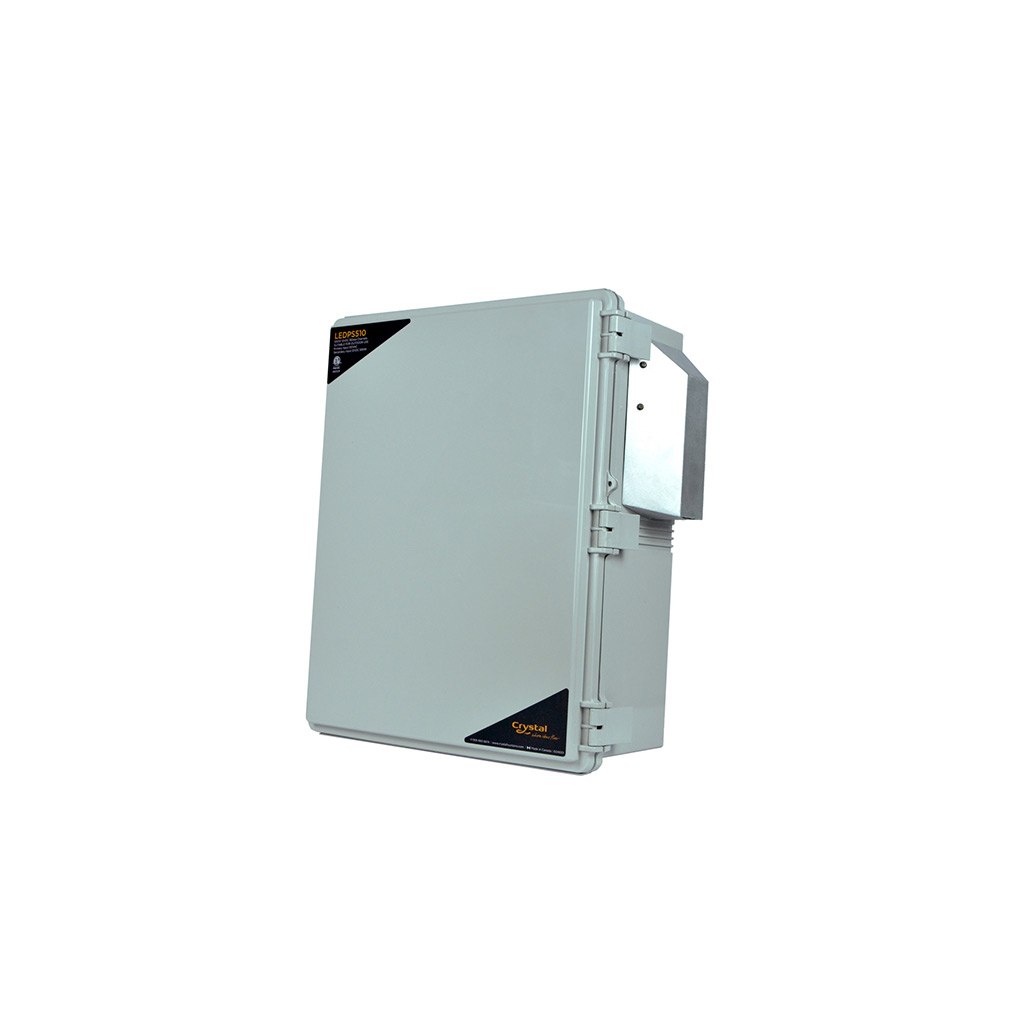

LEDPS510 Series – Power and Data Supply
Function
The LEDPS510 Series is a power and data supply panel for Water Features, Swimming Pools and Spas that acts as a key component for any DMX/RDM controlled water feature system. It is also the only panel on the market that is fully compliant with safety standard UL379. Used in conjunction with DMX/RDM compatible light or jet and the appropriate playback unit, this power supply can power anything from a simple playdeck to the most intricate of water feature designs.?
Specifications
- Data connections for up to 32 individual devices
- 12VDC or 24VDC
- 500W or 1000W
- RDM/DMX capability reduces system configuration, monitoring, and set up time
- Diagnostic LEDs, and simple switch circuit breakers
- Industry first UL swimming pool compliant rating, making it the ideal option for any powered underwater application
- NEMA 4 enclosure
SKU : LEDPS510, LEDPS511, LEDPS512, LEDPS513, LEDPS514, LEDPS515, LEDPS516, LEDPS517 Category Power and Data Supplies
LEDPS510&514-CUTSHEET
692 downloads1.47 MB
LEDPS510-CAD BLOCKS
16 downloads113.78 KB
LEDPS510-ALL-REVIT MODEL
9 downloads684.00 KB
LEDPS511&515-CUTSHEET
216 downloads1.53 MB
LEDPS512&516-CUTSHEET
167 downloads1.48 MB
LEDPS513&517-CUTSHEET
236 downloads1.54 MB
