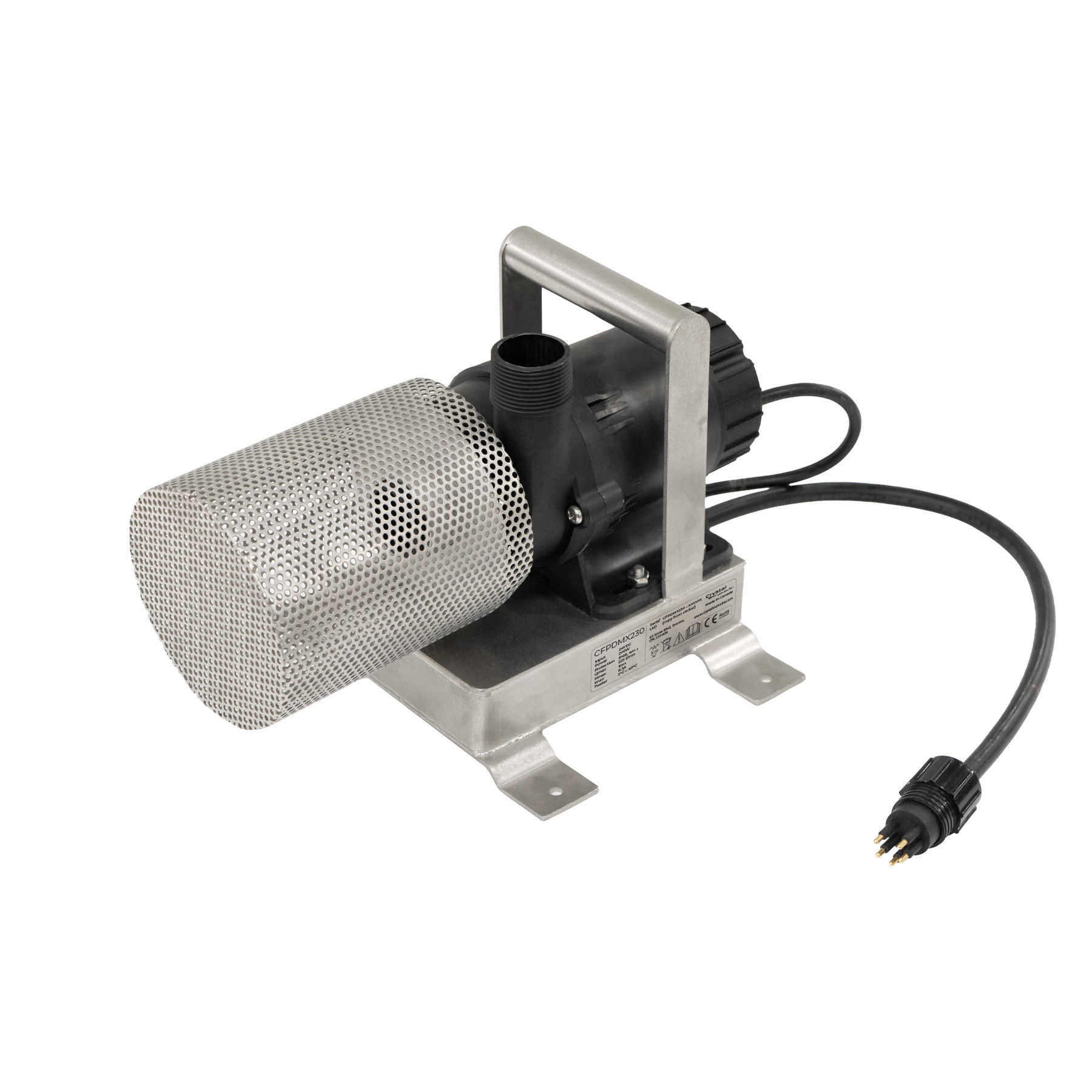

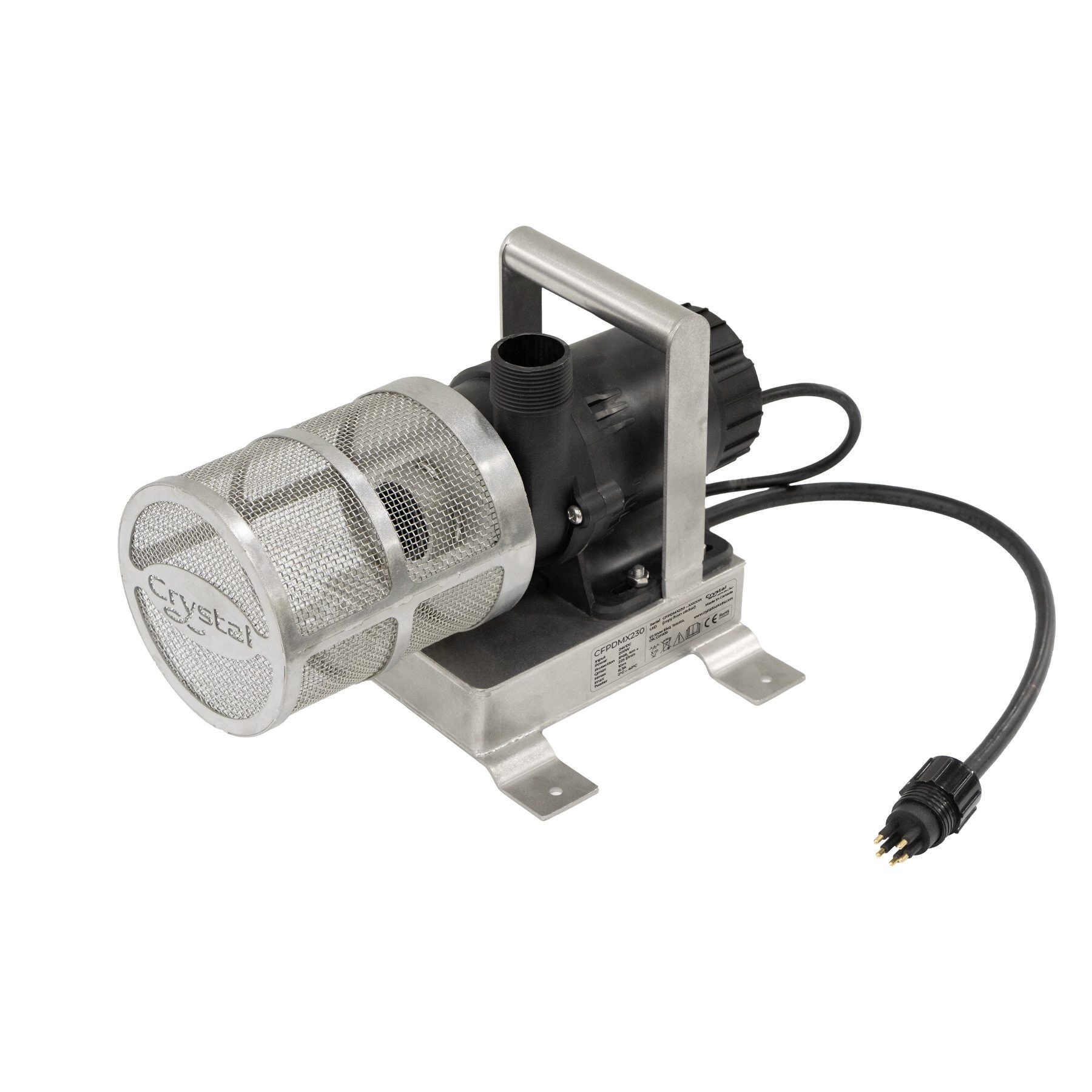

SUBMERSIBLE DMX PUMP 230
Function
The CFPDMX230, Submersible DMX Pump 230 Basin is a brushless 24V DC motor RDM/DMX enabled pump. Intended to be used with Crystal Fountains’ nozzles, LED free standing and slab hanger luminaires. The high control resolution of this pump provides extremely accurate and repeatable jet heights.
Specifications
- Input Voltage: 24 VDC
- Power: 200W (Pump)
- Min Water Level: 293 mm
- Water Temp: 2 ~ 40 °C
- Inlet Diameter: G1-1/4 in
- DMX Channels: 2 (ON/OFF and Speed)
- Material: 316 Stainless Steel and Plastic
- Currently not UL Rated
Product Recommendations
[repeater_count field=”product_recommendations”]
| Product Title | Product Effect | Product Link |
|---|---|---|
| NLC130 | Column Effect | View Product |
| NEA078 | Clear Stream | View Product |
| NIF100 | Hallow Effect | View Product |
| SWD Series | Articulating | View Product |
SKU : CFPDMX230-D101 Categories cfpdmx-230, Submersible Pumps
CFPDMX230 BASIN – MANUAL
100 downloads224.66 KB
CFPDMX230 – CUTSHEET
125 downloads224.66 KB
CFPDMX230- ELEV CAD
36 downloads56.38 KB
CFPDMX230 -INSTALLATION
103 downloads224.66 KB
CFPDMX230- PLAN CAD
37 downloads56.38 KB
CFPDMX230-REVIT
15 downloads1.12 MB
Specification CFPDMX230
downloads22.46 KB
